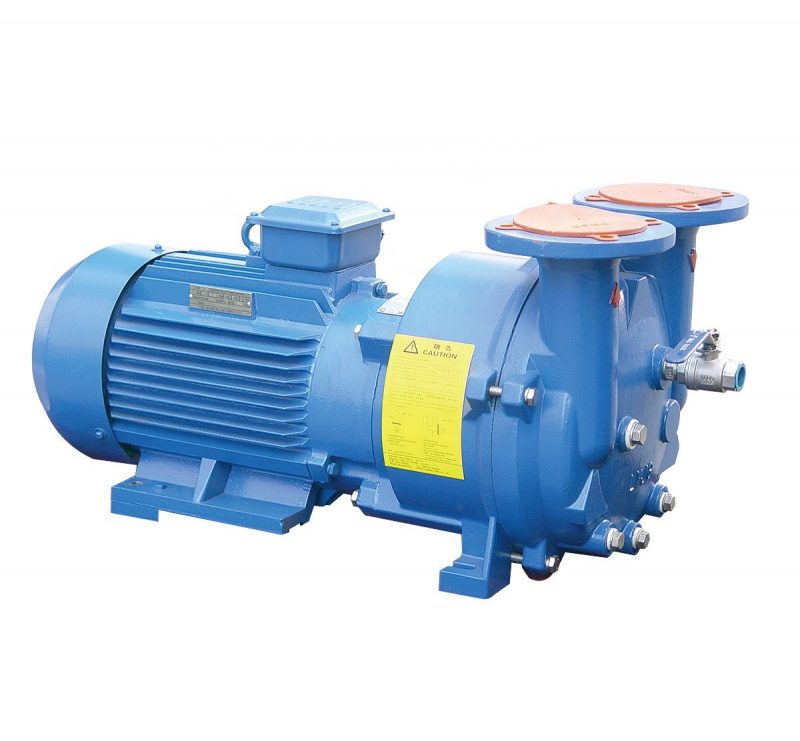

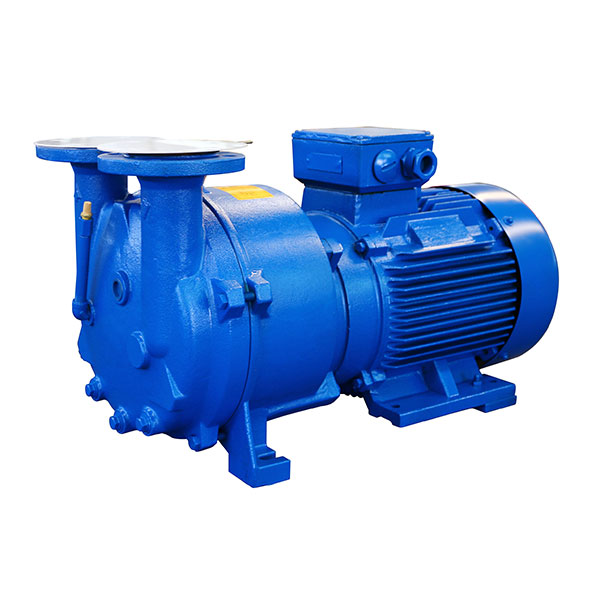

2BV Liquid Ring Vacuum Pump

Description

2BV electric industrial vacuum pump china made liquid ring vacuum pump

1. Liquid ring type structure & direct connect type design, high vacuum degree, easy to install and save space.
2. Used to pump air, vapour and other gas which is little corrosive, insoluble in water & with little solid.
3. Compressed gas is isothermal during the process, it is more secure for compressing and sucking flammable and explosive gas.
4.  Widely used in food industry, textile industry, sugar industry, medicine industry, chemical industry, dipping, drying or other craft processes.

Pumping capacity	0.45~8.3m3/min
Limit vacuum pressure	33mbar
Material	Cast iron, Stainless steel
Power Specs:	1.1~15kw / 220~480V 3phase; 50hz/60hz



Model	Pumping capacity		Ultimate vacuum mbar(MPa)	Water consumption (L/min)	Motor power (KW)	Speed (r/min)	Noise (dB)
	m³/min	m³/h
2BV2060	0.45	27	33mbar (-0.098MPa)	2	1.1	2900	62
2BV2061	0.86	52		2	1.5	2900	65
2BV2070	1.33	80		2.5	2.35	2900	66
2BV2071	1.83	110		4.2	3.85	2900	72
2BV5110	2.75	165		6.7	4	1450	63
2BV5111	3.83	230		8.3	5.5	1450	68
2BV5121	4.66	280		10	7.5	1450	69
2BV5131	6.66	400		15	11	1450	73
2BV5161	8.33	500		20	15	960	74
2BV6110	2.75	165		6.7	4	1450	63
2BV6111	3.83	230		8.3	5.5	1450	68
2BV6121	4.66	280		10	7.5	1450	69
2BV6131	6.66	400		15	11	1450	73
2BV6161	8.33	500		20	15	960	74
