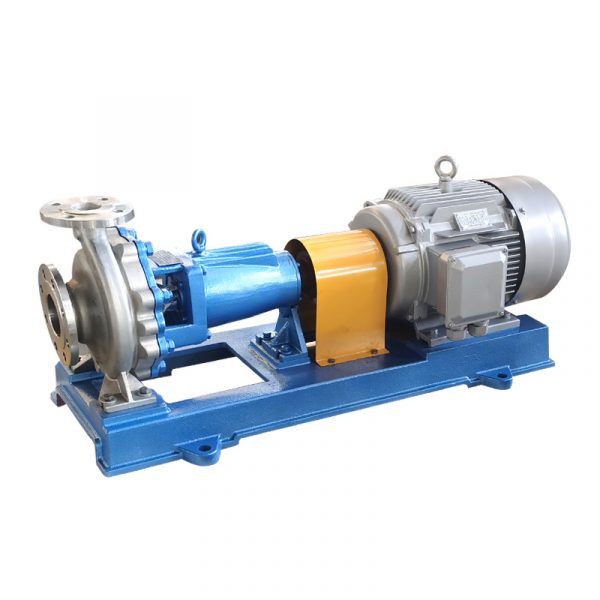

Stainless Steel Chemical Centrifugal Pump

Chemical centrifugal pump widely used in chemistry, petroleum, metallurgy, electricity, papermaking, food, pharmacy, environmental protection, wastewater treatment, synthetic fiber or other industries.

Description

Product introduction:

  1. IH high quality anti-corrosion acid circulation pump end suction chemical centrifugal pump is excellent in performance, efficiency and easy in maintenance.
  2. The centrifugal pump is made of high quality stainless steel material, which could be applied to transfer corrosive liquid (chemical) without solid and viscosity similar to water, just like sulfuric acid, hydrochloric acid, nitric acid, even base.
  3. The normal IH pump could transfer medium which is -20°C~105°C(-4°F~ 221°F), while high temperature type reaches 300°C(572°F).
  4. The acid circulation pumpis widely used in chemistry, petroleum, metallurgy, electricity, papermaking, food, pharmacy, environmental protection, wastewater treatment, synthetic fiber or other industries.

Product details:

Working Principle: Centrifugal
Main applications: Chemical
Driver: Electric motor
Power Specs: 220/380/400/415V 3phase;50hz/60hz
Max.permissible fluid temperature: 105°C(221°F)
Type of connection: Flange
Installation position: Horizontal
Casing parts material: Stainless Steel
Shaft seal type: Mechanical seal
Free passage: 0mm
Maximum drive rating: 90KW(10HP)
Maximum caliber: 200mm(8inch)
Maximum discharge-side pressure: 1.25MPa(12.5bar)
Maximum head: 125m(410ft)
Flow rate range: 6.3-400m3/h(27.7-1760US.GPM)



Performance data:

Model Speed Capacity Head Efficiency Power(KW) NPSH Weight
m3/h L/S (%) Shaft   power Motor   power
(r/min) (m) IS IH IS IH (m) (kg)
IH50-32-125 2900 7.5 2.08 22 47 43 0.96 1.09 2.2 2 32.5
12.5 3.47 20 60 51 1.13 1.33 2
15 4.17 18.5 60 49 1.26 1.5 2.5
1450 3.75 1.04 5.4 43 36 0.13 0.16 0.55 2
6.3 1.74 5 54 45 0.16 0.19 2
7.5 2.08 4.6 55 44 0.17 0.21 2.5
IH50-32-125A 2900 11.2 3.1 16 58 50 0.84 1.02 1.5 2 32.5
1450 5.6 1.56 4 52 44 0.12 0.15 0.55
IH50-32-160 2900 7.5 2.08 34.3 44 33 1.59 2.13 3 2 38.5
12.5 3.47 32 54 46 2.02 2.37 2
15 4.17 29.6 56 50 2.16 2.45 2.5
1450 3.72 1.04 8.5 35 29 0.25 0.3 0.55 2
6.3 1.74 8 48 40 0.29 0.34 2
7.5 2.08 7.5 49 43 0.31 0.36 2.5
IH50-32-160A 2900 11.7 3.25 28 52 45 1.72 1.8 2.2 2 38.5
1450 5.9 1.64 7 46 39 0.24 0.27 0.55
IH50-32-160B 2900 10.8 3 24 50 1.36 2.2 2 38.5
1450 5.4 1.5 6 44 0.2 0.55
IH50-32-200 2900 7.5 2.08 52.5 38 28 2.82 3.78 5.5 2 46
12.5 3.47 50 48 39 3.54 4.36 2
15 4.17 48 51 43 3.84 4.56 2.5
1450 3.7 1.07 13.1 33 23 0.41 0.57 0.75 2
6.3 1.74 12.5 42 33 0.51 0.65 2
7.5 2.08 12 44 36 0.56 0.68 2.5
IH50-32-200A 2900 11.74 3.25 44 46 38 3.05 3.7 4 2 46
1450 5.9 1.64 11 40 32 0.44 0.55 0.75
IH50-32-200B 2900 10.8 3 38 44 37 2.54 3.1 4 2 46
1450 5.4 1.5 9.5 38 31 0.37 0.47 0.75
IH50-32-250 2900 7.5 2.08 82 28.5 23 5.87 7.28 11 2 80
12.5 3.47 80 38 33 7.17 8.25 2
15 4.17 78.5 41 36.5 7.83 8.79 2.5
1450 3.75 1.04 20.5 23 17 0.91 1.23 1.5 2
6.3 1.74 20 32 27 1.07 1.27 2
7.5 2.08 19.5 35 31 1.14 1.29 2.5
IH50-32-250A 2900 11.7 3.25 70 36 32 6.2 7 7.5 2 80
1450 5.9 1.64 17.5 30 26 0.94 1.08 1.5
… …
IH200-150-250 1450 240 66.7 21.5 71 19.8 37 3.5 180
400 111.1 20 82 79 26.58 27.6 4.3
460 127.8 17.5 80 27.4 5
IH200-150-250A 1450 374 87.2 17.5 80 78 22.29 22.9 30 4.3
IH200-150-250B 1450 346 96.1 15 78 77 18.13 19.3 22 4.3
IH200-150-315 1450 240 66.7 37 70 67 34.6 34.7 55 3 245
400 111.1 32 82 79 42.54 44.1 3.5
460 127.8 28.5 80 77 44.6 47.8 4
IH200-150-315A 1450 374 103.9 28 80 78 36.62 36.7 45 3.5 245
IH200-150-315B 1450 346 96.1 24 78 77 29.02 30.8 37 3.5
IH200-150-400 1450 240 66.7 55 74 67 48.6 54.4 90 3 275
400 111.1 50 81 78 67.2 69.8 3.8
460 127.8 45 76 75 74.2 78.5 4.5
IH200-150-400A 1450 374 103.9 44 79 77 56.76 58 75 3.8 275
IH200-150-400B 1450 346 96.1 38 77 76 46.53 48.8 55 3.8

Parameter table above is only a part of whole. For more, please contact us directly.
