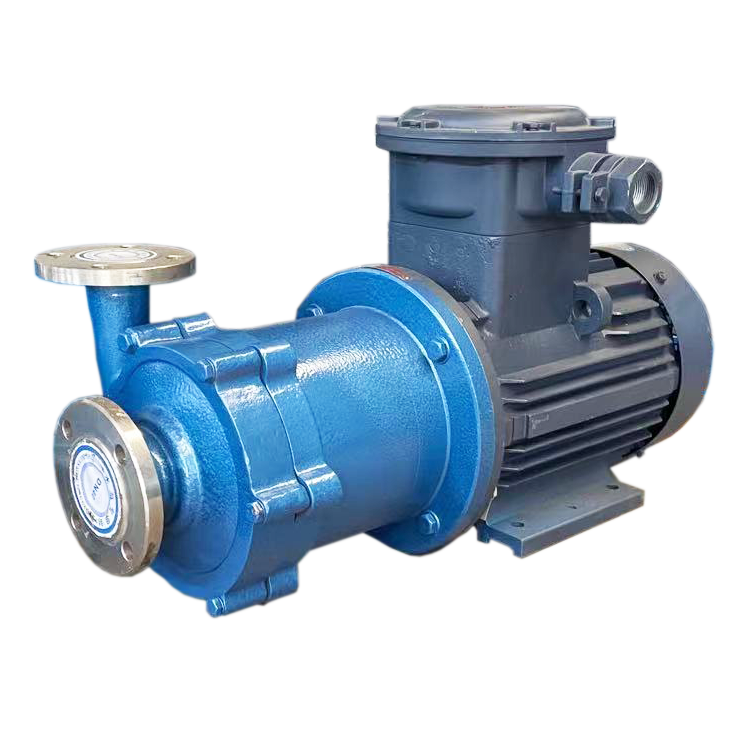

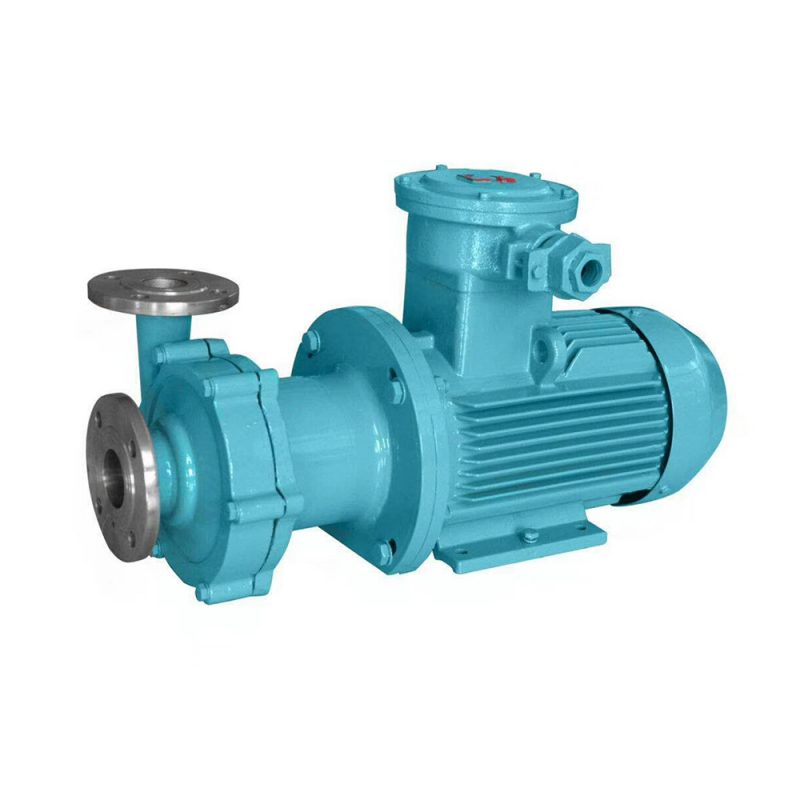

CQ Stainless Steel Magnetic Pump

Description

Introduction:

1. CQ non-leakage chemical stainless steel magnetic pump explosion proof transfer acid pump is made of high quality stainless steel material.
2. The transfer acid pump is with many merits of compact structure, small volume, non-leakage, good corrosion resistance ability, low noise, reliable running and easy to maintain.
3. The chemical magnetic pump could be used to transfer acid, caustic soda, lye, liquor, oil, rare and precious, venom, volatile liquid or work as the unit marching circulating water equipment and filter separator.
4. Widely used in chemical industry, pharmacy, petroleum, electro facing industry, food industry, film and photo processing, scientific research institution and national defense industry.



Product details:

Working Principle:	Centrifugal, Magnetic
Main applications:	Chemical, water, oil
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 220/240 V 1phase; 50hz/60hz
Max.permissible fluid temperature:	80°C(203°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Stainless steel/Stainless steel
Shaft seal type:	Static sealing
Free passage:	0 mm
Maximum drive rating:	30KW(40HP)
Maximum caliber:	150mm(6inch)
Maximum discharge-side pressure:	0.5MPa(5bar)
Maximum head:	50m(164ft)
Flow rate range:	20-3350L/min(45.3-884.4 US.GPM)



Performance data:

Model	Inlet	Outlet	Head	Capacity	Power	Speed	Voltage	stainless steel
	(mm)	(mm)	(m)	(L/min)	(KW)	(r/min)	(Phase)
14CQ-5	14	10	5	20	0.18	2800	1ph/3ph
16CQ-8	16	12	8	30	0.18	2800	1ph/3ph
20CQ-12	20	12	12	50	0.37	2800	1ph/3ph
25CQ-15	25	20	15	110	1.1	2800	3phase
32CQ-15	32	25	15	110	1.1	2800	3phase
32CQ-25	32	25	25	90	1.1	2800	3phase
40CQ-20	40	32	20	180	2.2	2800	3phase
40CQ-32	40	32	32	200	4	2800	3phase
50CQ-25	50	40	25	240	4	2800	3phase
50CQ-32	50	40	32	220	4	2800	3phase
50CQ-50	50	32	50	130	5.5	2800	3phase
65CQ-25	65	50	25	280	5.5	2800	3phase
65CQ-32	65	50	32	450	5.5/7.5	2800	3phase
80CQ-32	80	65	32	850	11	2800	3phase
80CQ-50	80	65	50	850	15	2800	3phase
100CQ-35	100	80	35	1000	15	2800	3phase
100CQ-50	100	80	50	1000	18.5	2800	3phase
125CQ-32	125	100	32	1700	22	2800	3phase
125CQ-32	125	100	32	2500	30	1450	3phase
150CQ-25	150	125	25	3350	30	1450	3phase
