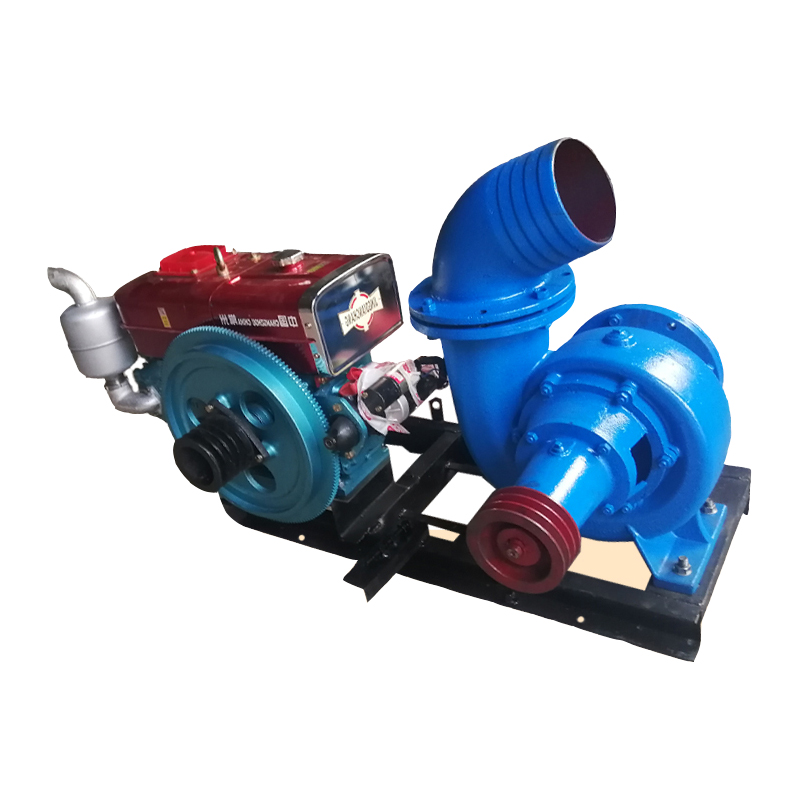

Diesel Engine Mixed Flow Pump

HW mixed flow pump mainly used for agricultural irrigation, sugar factory, paper making factory and can also be used for floods and rain water drainage.

Description

Introduction:

1.HW mixed flow pump is horizontal, single stage, single suction mixed flow pump; it is suitable for transporting clean water or similar chemical liquid whose temperature is under 50°C.

2.Mixed flow pump has the features of simple structure, reliable in operation, easy installation, high efficiency, small dimension, light weight.,

3.It is in high efficiency and energy saving type, mainly used for agricultural irrigation, sugar factory, paper making factory and can also be used for floods and rain water drainage.



Product details:

Item: Mixed flow pump
Mixed flow pump: HW type mixed flow pump for agricultural irrigation
Model: HW
Material: Cast iron and customized
Color: Blue and adjustable
Mode: Horizontal
Impeller: Closed impeller
Drive: Belt or coupling
Seal: Soft packing seal or mechanical seal
Medium temperature: <=50°C
Speed: 1450r/min,970r/min
Theory: Centrifugal pump
Structure: Single stage pump
Usage: Clean water
Power: Electric or diesel
Standard or Nonstandard: Standard
Application: Irrigation, water supply and drain
Outlet diameter: 100-800mm
Capacity: 10.8-5400m³/h
Head: 3-118m
Power: 3-550kw
Warranty: 1year
Certificate: ISO9001
OEM: Acceptable
Feature: High efficiency, easy maintenance, no clogging



Performance data:

Model Capacity Head Speed Effciency Power(kw) NPSHr
(l/s) (m³/h) (m) (r/min) (%) Shaft Motor (m)
100HW-5 25 90 5 2900 79 1.55 2.2 4
100HW-8 25 90 8 2900 81 2.42 3 4
100HW-12 25 90 12.5 2900 81 3.78 5.5 4
150HW-5 50 180 5 1450 82 2.99 4 2.7
150HW-8 50 180 8 1450 82 4.78 2.7
150HW-12 50 180 12.5 2900 82 7.47 6
200HW-4 95 340 4 1060 81 4.6 4
200HW-5 100 360 5 1450 81.5 6.01 4
200HW-8 100 360 8 1450 83.5 9.39 11 4
200HW-12 100 360 12.5 1450 83.5 14.68 4
250HW-4 125 450 4.2 980 82.5 6.3 4
250HW-5 150 540 5 1180 82 8.97 4
250HW-7 125 450 7 980 83 10.5 15 4
250HW-8 150 540 8 1180 84 14.01 4
250HW-12 150 540 12.5 1180 84 21.88 4
300HW-4 197 710 4 780 83.5 4.4 11 4
300HW-5 220 792 5 970 83 12.99 4
300HW-7 216 780 7 980 84 17.7 22 4
300HW-8 220 792 8 970 85 20.3 4
300HW-12 220 792 12.5 970 85 31.72 4
350HW-4 278 1000 4.3 980 85 16.6 22 4.5
350HW-8 278 1000 8 980 85.5 25.5 4.5
400HW-5 400 1440 5 730 84 23.34 4
400HW-7 350 1260 6.8 730 86 28.1 30 4
400HW-8 400 1440 8 730 86 36.48 4
400HW-10 390 1400 10 730 86 44.5 55 4
400HW-12 400 1440 12.5 730 86 57 5.5
500HW-6 550 1980 6.2 580 86 38.9 45 5.5
500HW-7 650 2340 7 730 85 52.48 5.5
500HW-11 650 2340 11 730 87 80.57 5.5
650HW-7 940 3400 6.5 450 90 68 90 5.5
650HW-10 923 3322 9.7 490 89 98.6 115 5.5
