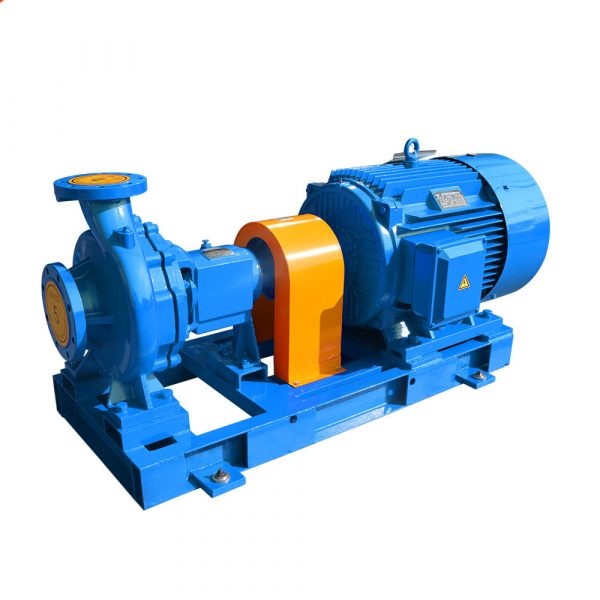

IS End Suction Water Pump

Description

Introduction:

1. IS High efficiency single stage end suction water pump cast iron low cost centrifugal pump is an energy-saving pump designed by Jushi.
   2. Pump is for water or liquid similar to water, with high temperature mechanical seal it also could be used to transfer hot water.
   3. IS pump is simple, reliable, small, light, and with good anti-cavitation performance, little power consumption and easy to maintain.
   4. It applies to work in system of industry and city water supply & drainage, water supercharging of high rise building, park spray irrigation, water pressurize in fire control, remote water delivery, cycle refrigeration of heating and ventilation, circulatory supercharger of cold-warm water in bathroom, etc.

Product details:

Working Principle:	Standard Centrifugal, end suction
Main applications:	Water
Driver:	Electric motor, diesel engine
Power Specs:	220V,240V,380V,400V,415V,440V  50hz/60hz
Max.permissible fluid temperature:	80°C  /  100℃(IR hot water type)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron/Cast iron
Shaft seal type:	Packing seal, Mechanical seal
Maximum drive rating:	90KW(120HP)
Maximum caliber:	200mm(8inch)
Maximum discharge-side pressure:	1.25MPa(12.5bar)
Maximum head:	125m(410ft)
Flow rate range:	6.3-400m3/h(27.7-1760US.GPM)



Performance data:

Model	Speed (r/min)	Capacity		Head (m)	Efficiency (%)	Power(KW)
		(m3/h)	(L/s)			Shaft	Motor
50-32-125	2900	12.5	3.47	20	51	1.33	2.2
	1450	6.3	1.74	5	45	0.19	0.55
50-32-160	2900	12.5	3.47	32	46	2.37	3
	1450	6.3	1.74	8	40	0.34	0.55
50-32-200	2900	12.5	3.47	50	39	4.36	5.5
	1450	6.3	1.74	12.1	33	0.65	1.1
50-32-250	2900	12.5	3.47	80	33	8.25	11
	1450	6.3	1.74	20	27	1.27	2.2
65-50-125	2900	25	6.94	20	62	2.2	3
	1450	12.5	3.47	5	55	0.31	0.55
65-50-160	2900	25	6.94	32	57	3.82	5.5
	1450	12.5	3.47	8	51	0.53	0.75
65-40-200	2900	25	6.94	50	52	6.55	11
	1450	12.5	3.47	12.5	46	0.93	1.5
65-40-250	2900	25	6.94	80	46	11.84	15
	1450	12.5	3.47	20	39	1.75	3
65-40-315	2900	25	6.94	125	39	21.8	30
	1450	12.5	3.47	32	33	3.3	5.5
80-65-125	2900	50	13.9	20	69	3.95	5.5
	1450	25	6.94	5	64	0.53	0.75
80-65-160	2900	50	13.9	32	67	6.51	11
	1450	25	6.94	8	62	0.88	1.5
80-50-200	2900	50	13.9	50	63	10.81	15
	1450	25	6.94	12.5	57	1.49	2.2
80-50-250	2900	50	13.9	80	53	20.57	30
	1450	25	6.94	20	50	2.72	5.5
80-50-315	2900	50	13.9	125	50	34.1	45
	1450	25	6.94	32	48	4.54	7.5
100-80-125	2900	100	27.8	20	73	7.47	11
	1450	50	13.9	5	69	0.99	1.5
100-80-160	2900	100	27.8	32	73	11.9	15
	1450	50	13.9	8	69	1.58	2.2
100-65-200	2900	100	27.8	50	72	18.92	22
	1450	50	13.9	12.5	68	2.5	4
100-65-250	2900	100	27.8	80	68	32.06	37
	1450	50	13.9	20	63	4.33	5.5
100-65-315	2900	100	27.8	125	62	54.94	75
	1450	50	13.9	32	58	7.52	11
125-100-200	2900	200	55.6	50	77	35.39	45
	1450	100	27.8	12.5	73	4.66	7.5
125-100-250	2900	200	55.6	80	75	58.13	75
	1450	100	27.8	20	72	7.56	11
125-100-315	1450	100	27.8	31	65	13.42	22
125-100-400	1450	100	27.8	50	55	24.77	30
150-125-315	1450	200	55.6	32	75	23.25	30
150-125-400	1450	200	55.6	50	70	38.93	55
200-150-250	1450	400	111.1	20	79	27.59	37
200-150-315	1450	400	111.1	32	79	44.15	55
200-150-400	1450	400	111.1	50	78	69.87	90

Parameter table above is only a part of whole. For more, please contact us directly.
