FSB (L) Fluoroplastic Alloy Centrifugal Pump

Fluoroplastic alloy centrifugal pump widely used in chemistry, petroleum, metallurgy, electricity, papermaking, food, pharmacy, environmental protection, wastewater treatment, synthetic fiber or other industries.

Description

Product introduction:

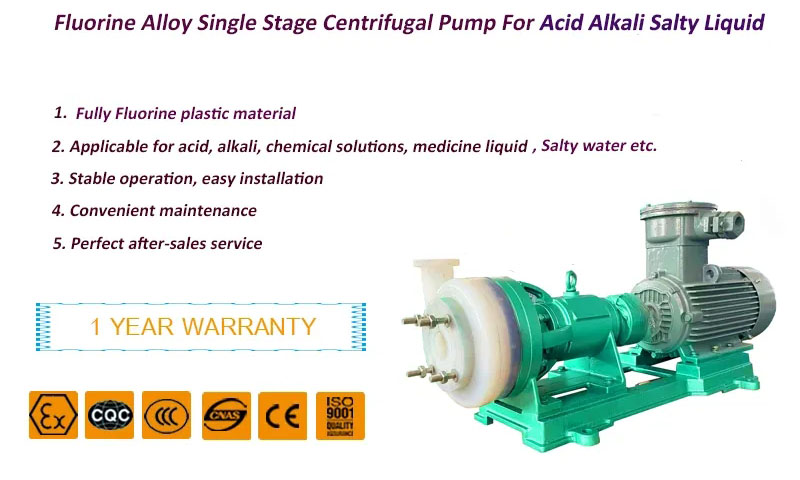

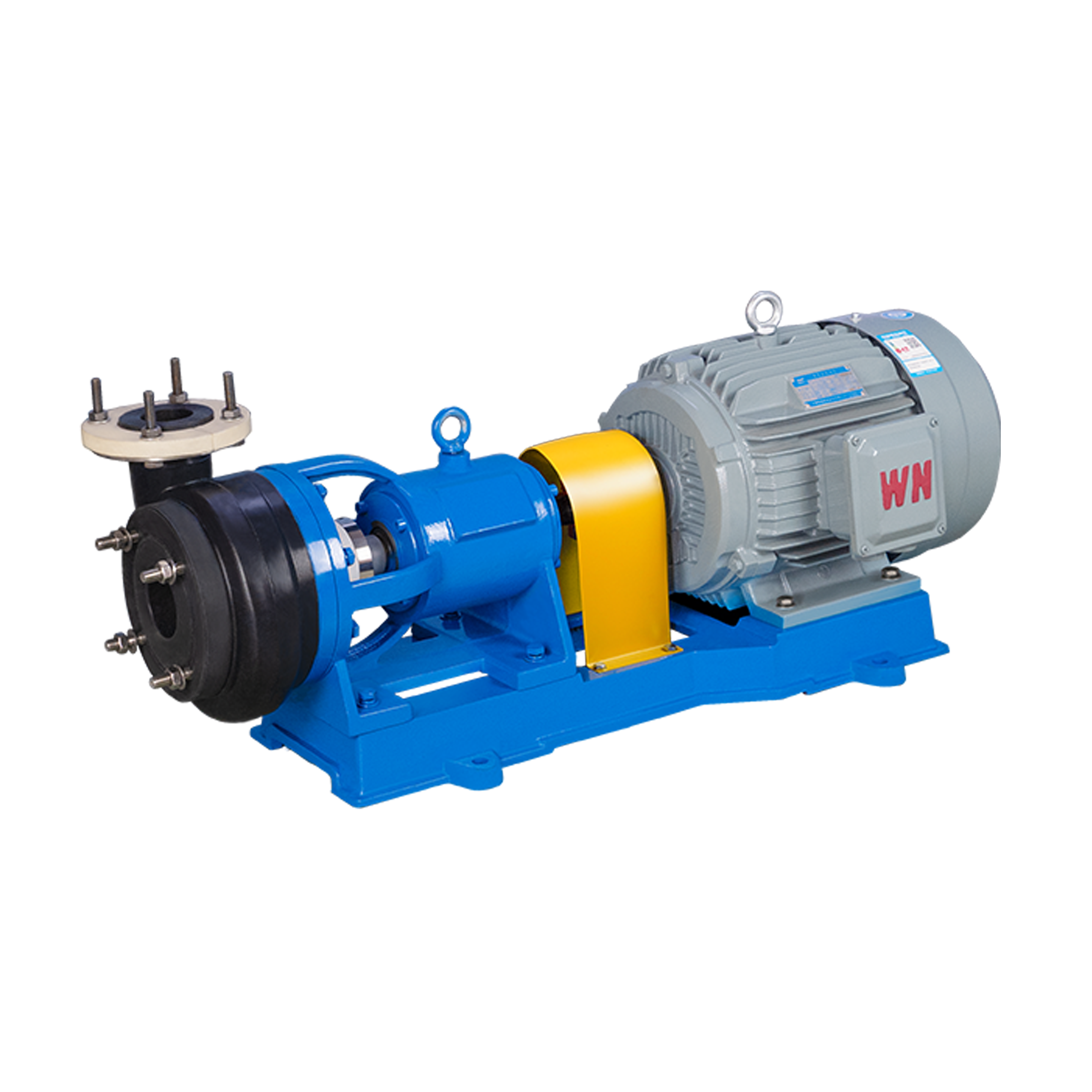

FSB (L) fluoroplastic alloy centrifugal pump,
FSB (L) fluoroplastic alloy centrifugal pump, Overflowing parts are all made of fluoroplastic alloy, fully plastic pump body, cantilever structure, can not bear the weight of the pipeline, it is more portable, maintenance and labor saving.
Anhui Tenglong pump valve fluorine plastic centrifugal pump main parameters:
Flow: 3.6m³/h-100m³/h
Head: 15m-55m(1.5bar-5.5bar)
Power: 1.5kw-18.5kw
Applicable medium: Acids, bases, salts, strong oxidants of any concentration
Characteristics: Plastic shell, long life of machine seal, portable equipment

Product details:

Model Type FSB-L  (Fluorine alloy centrifugal pump)
Flow range 3.6m³/H-100m³/H(60L/min-1666L/min)
Head range 15-50m(50-166feet)
Motor power 1.5-15kw(2-20HP)
Speed  2900r/min,1450r/min, 3600r/min or as customer required
EFF 30-70%
NPSHr 3.0-3.5m(10-11feet)
Aperture 25*25-100*80mm
Weight 48-250kg
Voltage 220V-600V, 50Hz-60Hz or as customer required
Connection Flange butt joint(ASME-ANSI-JIS-GB) or as customer required
Performance Corrosion Resistance
Brand name TEFLOW PUMP
Material FEP,PFA,PTFE,PVDF,PP,lined
Characteristics FSB-L centrifugal pump flow parts are made of fluoroplastic alloy, full-plastic pump body, cantilever structure, compared with the IHF series, it is lighter and easier to maintain.
Advantages 1. The fluorine alloy material of the pump shell is molded.
2. The impeller is corrosion-resistant and wear-resistant and not suitable for deformation.
3. Mechanical seal V-shaped groove, full elasticity, better and reliable performance.
4. Elastic shock absorption of diaphragm coupling, no noise and no wear.
Applicable medium It is one of the latest corrosion-resistant equipment in the world to transport any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, salt water pump, reductant and other harsh conditions of strong corrosive medium.

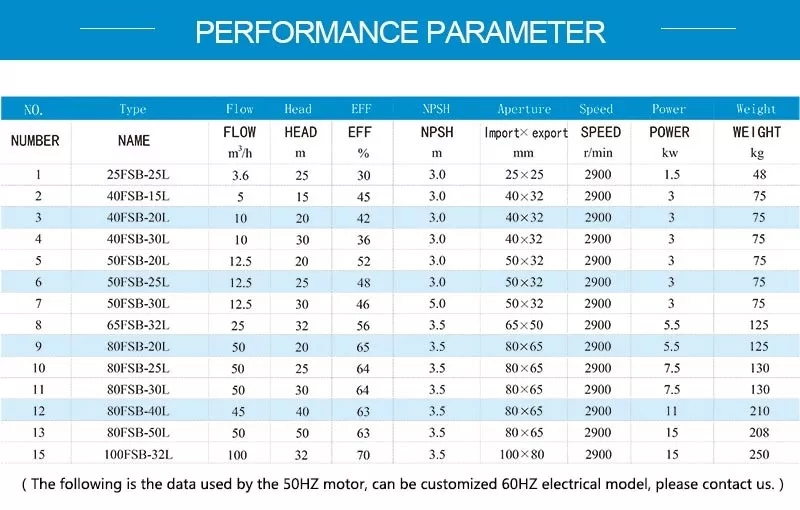

Performance data:

fsb pump data
