HD Drum Barrel Pump

HD barrel drum pump widely used in diesel oil, gasoline, light oil, oil station, beverage, milk, water, chemical, acid, alkali, etc.

Description

Introduction:

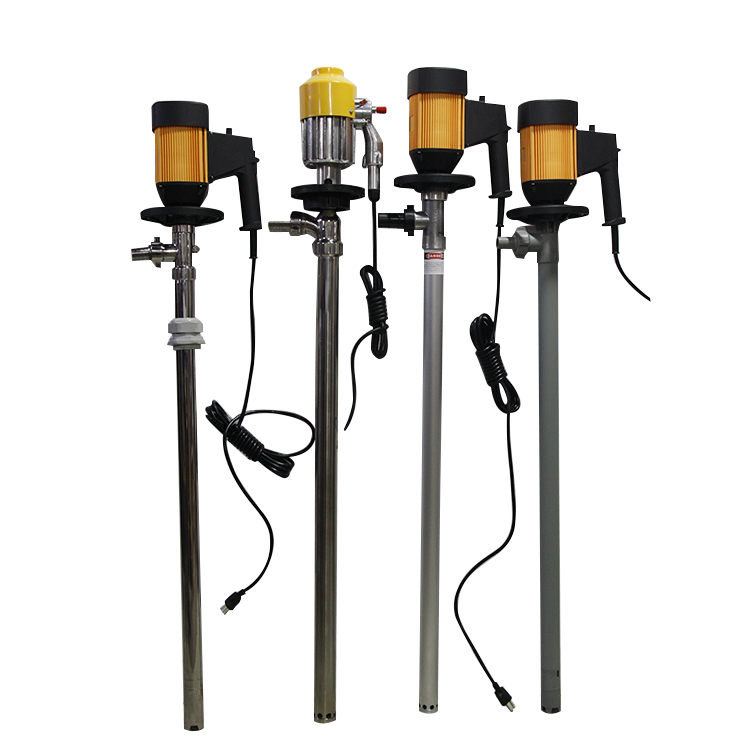

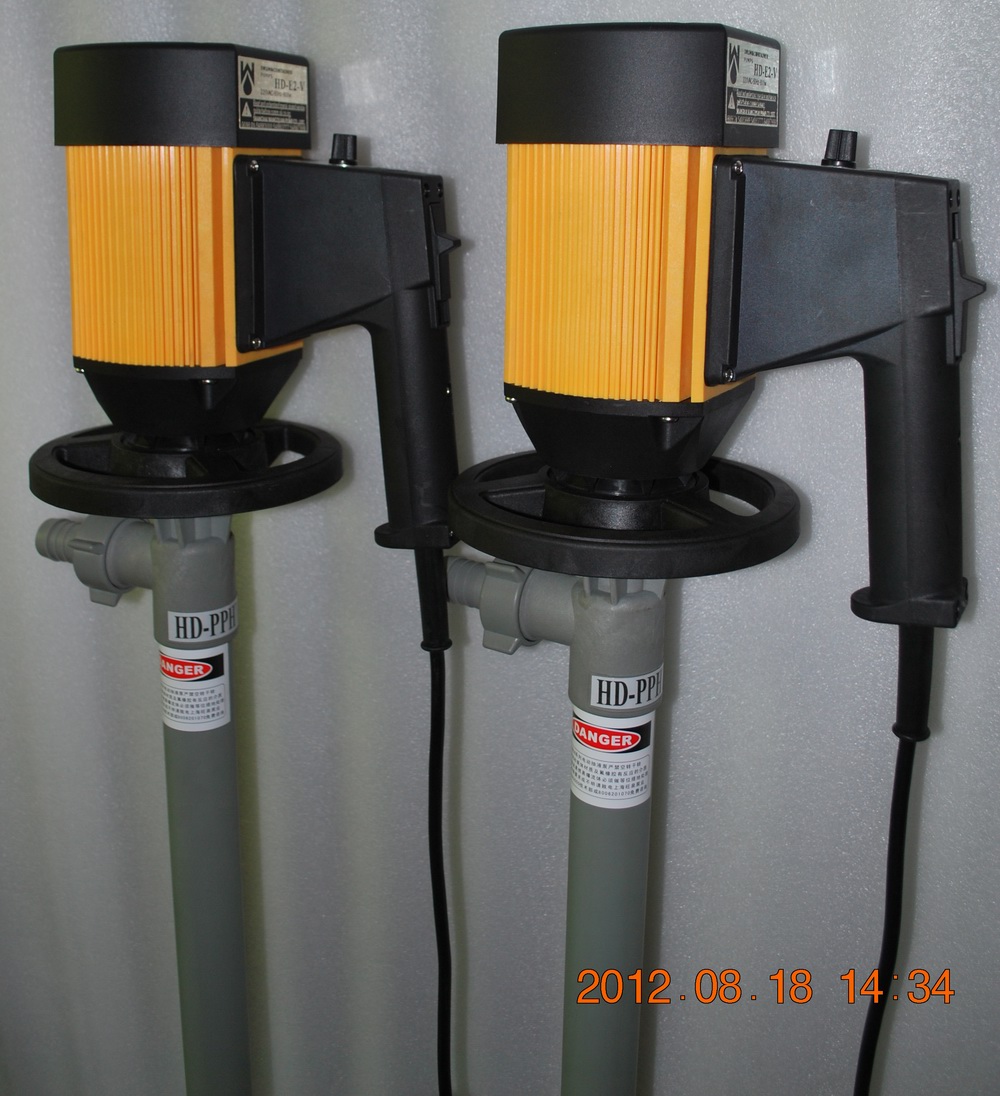

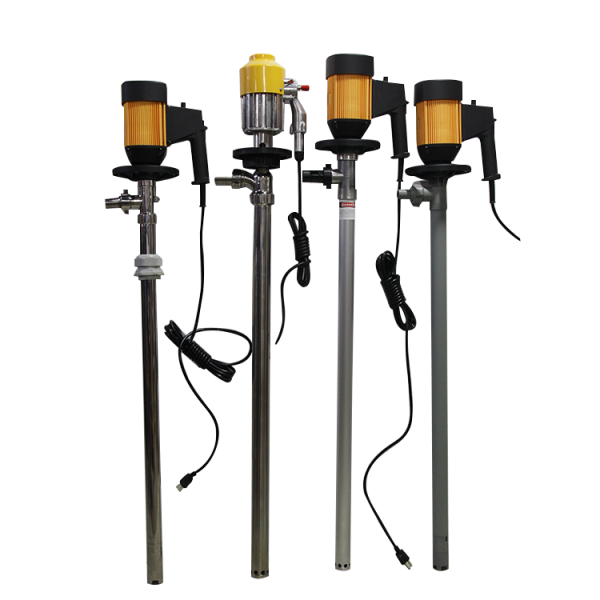

HD series single phase vertical electric diesel oil pump vertical light oil transfer drum barrel pump

  1. HD series drum pumps are developed on European and American technology, it is featured with advanced technology, stable performance, easy to operate, reliable, cost-effective etc.
  2. Pump and motor use threaded flange mounting plate, no need to use any tools in process of installing or dismounting, so the maintenance is very convenient.
  3. We can provide variable speed motor, ordinary fixed speed motor, explosion-proof motor, air operated motor.
  4. The casing material has Aluminum alloy, SS304, SS316, PP(PPHT), PVDF, etc
  5. Widely used in diesel oil, gasoline, light oil, oil station, beverage, milk, water, chemical, acid, alkali, etc.



Product details:

Working Principle: Centrifugal
Main applications: Oil, light oil, water, chemical,
Driver: Electric motor, pneumatic
Power Specs: 220V 50Hz single phase
Max. permissible fluid temperature: 80°C
Casing/Inner parts material: Aluminum alloy, SS304, SS316, PP, PVDF
Shaft seal type: Oil seal, F4 seal, Mechanical seal;
Maximum viscosity: 1000CST
Maximum drive rating: 1.1KW(1.5HP)
Maximum tube diameter: 55mm
Maximum outlet diameter: 25mm
Maximum head: 30m(98.4ft)
Flow rate range: 20-198L/min(5.3-52.3US.GPM)

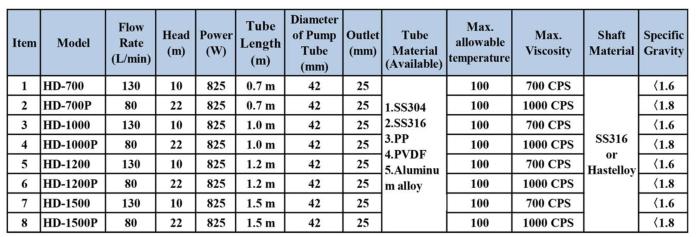

Performance data:

barrel drum pump

Selection:

  1. Flow rate, head and viscosity: Refer to the above table
  2. Motor type: variable speed – Explosion proof – Fixed high speed – Air operated
  3. Pump tube material: Aluminum alloy – SS304 –  SS316 –  PP –  PVDF
  4. Pump tube lenght:  700mm – 1000mm – 1200mm – 1500mm – 1800mm
