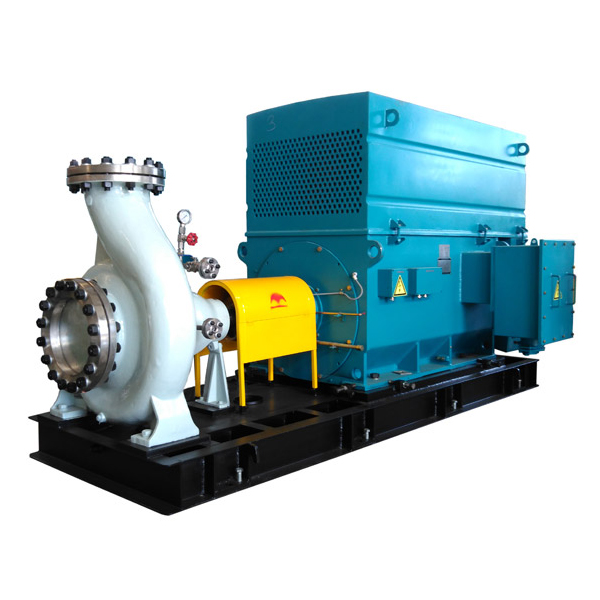

High Corrosive Resistance Titanium Material Acid Centrifugal Pump

Description

Product introduction:

1. IH high quality anti-corrosion acid circulation pump end suction high corrosive resistance titanium material acid centrifugal pump is excellent in performance, efficiency and easy in maintenance.
2. The centrifugal pump is made of high quality stainless steel material, which could be applied to transfer corrosive liquid (chemical) without solid and viscosity similar to water, just like sulfuric acid, hydrochloric acid, nitric acid, even base.
3. The normal IH pump could transfer medium which is -20°C~105°C(-4°F~ 221°F), while high temperature type reaches 300°C(572°F).
4. The acid circulation pumpis widely used in chemistry, petroleum, metallurgy, electricity, papermaking, food, pharmacy, environmental protection, wastewater treatment, synthetic fiber or other industries.



Product details:

Working Principle:	Centrifugal
Main applications:	Chemical
Driver:	Electric motor
Power Specs:	220/380/400/415V 3phase;50hz/60hz
Max.permissible fluid temperature:	105°C(221°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing parts material:	Stainless Steel
Shaft seal type:	Mechanical seal
Free passage:	0mm
Maximum drive rating:	90KW(10HP)
Maximum caliber:	200mm(8inch)
Maximum discharge-side pressure:	1.25MPa(12.5bar)
Maximum head:	125m(410ft)
Flow rate range:	6.3-400m3/h(27.7-1760US.GPM)



Performance data:

Model	Speed	Capacity		Head	Efficiency		Power(KW)			NPSH	Weight
		m3/h	L/S		(%)		Shaft   power		Motor   power
	(r/min)			(m)	IS	IH	IS	IH		(m)	(kg)
IH50-32-125	2900	7.5	2.08	22	47	43	0.96	1.09	2.2	2	32.5
		12.5	3.47	20	60	51	1.13	1.33		2
		15	4.17	18.5	60	49	1.26	1.5		2.5
	1450	3.75	1.04	5.4	43	36	0.13	0.16	0.55	2
		6.3	1.74	5	54	45	0.16	0.19		2
		7.5	2.08	4.6	55	44	0.17	0.21		2.5
IH50-32-125A	2900	11.2	3.1	16	58	50	0.84	1.02	1.5	2	32.5
	1450	5.6	1.56	4	52	44	0.12	0.15	0.55
IH50-32-160	2900	7.5	2.08	34.3	44	33	1.59	2.13	3	2	38.5
		12.5	3.47	32	54	46	2.02	2.37		2
		15	4.17	29.6	56	50	2.16	2.45		2.5
	1450	3.72	1.04	8.5	35	29	0.25	0.3	0.55	2
		6.3	1.74	8	48	40	0.29	0.34		2
		7.5	2.08	7.5	49	43	0.31	0.36		2.5
IH50-32-160A	2900	11.7	3.25	28	52	45	1.72	1.8	2.2	2	38.5
	1450	5.9	1.64	7	46	39	0.24	0.27	0.55
IH50-32-160B	2900	10.8	3	24	50		1.36		2.2	2	38.5
	1450	5.4	1.5	6	44		0.2		0.55
IH50-32-200	2900	7.5	2.08	52.5	38	28	2.82	3.78	5.5	2	46
		12.5	3.47	50	48	39	3.54	4.36		2
		15	4.17	48	51	43	3.84	4.56		2.5
	1450	3.7	1.07	13.1	33	23	0.41	0.57	0.75	2
		6.3	1.74	12.5	42	33	0.51	0.65		2
		7.5	2.08	12	44	36	0.56	0.68		2.5
IH50-32-200A	2900	11.74	3.25	44	46	38	3.05	3.7	4	2	46
	1450	5.9	1.64	11	40	32	0.44	0.55	0.75
IH50-32-200B	2900	10.8	3	38	44	37	2.54	3.1	4	2	46
	1450	5.4	1.5	9.5	38	31	0.37	0.47	0.75
IH50-32-250	2900	7.5	2.08	82	28.5	23	5.87	7.28	11	2	80
		12.5	3.47	80	38	33	7.17	8.25		2
		15	4.17	78.5	41	36.5	7.83	8.79		2.5
	1450	3.75	1.04	20.5	23	17	0.91	1.23	1.5	2
		6.3	1.74	20	32	27	1.07	1.27		2
		7.5	2.08	19.5	35	31	1.14	1.29		2.5
IH50-32-250A	2900	11.7	3.25	70	36	32	6.2	7	7.5	2	80
	1450	5.9	1.64	17.5	30	26	0.94	1.08	1.5
… …
IH200-150-250	1450	240	66.7	21.5	71		19.8		37	3.5	180
		400	111.1	20	82	79	26.58	27.6		4.3
		460	127.8	17.5	80		27.4			5
IH200-150-250A	1450	374	87.2	17.5	80	78	22.29	22.9	30	4.3
IH200-150-250B	1450	346	96.1	15	78	77	18.13	19.3	22	4.3
IH200-150-315	1450	240	66.7	37	70	67	34.6	34.7	55	3	245
		400	111.1	32	82	79	42.54	44.1		3.5
		460	127.8	28.5	80	77	44.6	47.8		4
IH200-150-315A	1450	374	103.9	28	80	78	36.62	36.7	45	3.5	245
IH200-150-315B	1450	346	96.1	24	78	77	29.02	30.8	37	3.5
IH200-150-400	1450	240	66.7	55	74	67	48.6	54.4	90	3	275
		400	111.1	50	81	78	67.2	69.8		3.8
		460	127.8	45	76	75	74.2	78.5		4.5
IH200-150-400A	1450	374	103.9	44	79	77	56.76	58	75	3.8	275
IH200-150-400B	1450	346	96.1	38	77	76	46.53	48.8	55	3.8

Parameter table above is only a part of whole. For more, please contact us directly.
