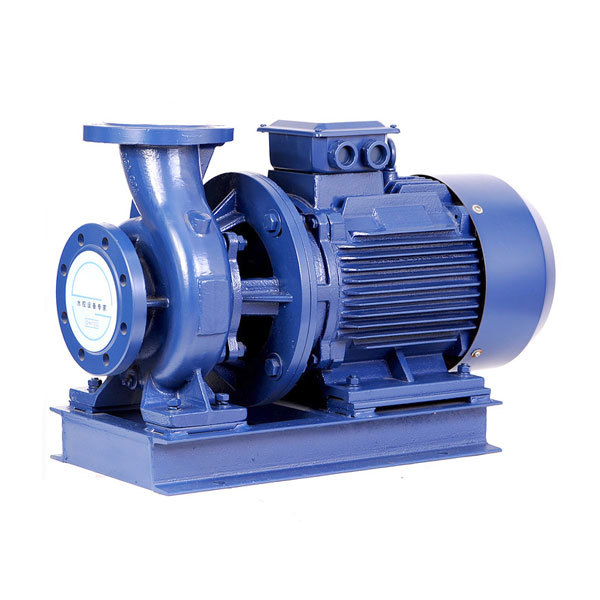

Horizontal Chemical Process Pipeline Inline Centrifugal Water Pump
ISW horizontal inline centrifugal water pump widely used in light & textile industry, petroleum, chemical industry, metallurgical industry, mining, medicine and synthetic fiber etc.
Description
Product introduction:
- ISW horizontal chemical process pipeline inline centrifugal water pump designed by Jushi.
- It is used to transport the liquid containing no solid grain, corrosive and the viscosity of which is similar to water.
- The horizontal inline centrifugal pump is with the merits of compact structure, small volume, stable running, easy to mount and maintain.
- Widely used in light & textile industry, petroleum, chemical industry, metallurgical industry, mining, medicine and synthetic fiber etc.
Product details:
Working Principle: | Centrifugal |
Main applications: | Oil |
Driver: | Electric motor |
Power Specs: | 380/415V 3phase; 50hz/60hz |
Max.permissible fluid temperature: | 120°C(248°F) |
Type of connection: | Flange |
Installation position: | horizontal |
Casing material: | Cast iron, Stainless steel/Cast iron, Stainless steel |
Shaft seal type: | Mechanical seal |
Free passage: | 0.2mm |
Maximum drive rating: | 250KW(340HP) |
Maximum caliber: | 500mm(20inch) |
Maximum discharge-side pressure: | 1.6MPa(16bar) |
Maximum head: | 160m(524.8ft) |
Flow rate range: | 1.1-2400m3/h(4.8-10560US.GPM) |
Performance data:
Model | Capacity | Head | Power | Speed | Eff. | (NPSH)r | Weight | |
(m3/h) | (L/s) | (m) | (KW) | (r/min) | (%) | (m) | (kg) | |
15-80 | 1.1 | 0.3 | 8.5 | 0.18 | 2800 | 32.1 | 2.3 | 20 |
1.5 | 0.42 | 8 | ||||||
2 | 0.56 | 7 | ||||||
20-110 | 1.8 | 0.5 | 16 | 0.37 | 2800 | 32.4 | 2.3 | 25 |
2.5 | 0.69 | 15 | ||||||
3.3 | 0.91 | 13.5 | ||||||
20-125 | 1.8 | 0.5 | 21 | 0.75 | 2800 | 28.1 | 2.3 | 35 |
2.5 | 0.69 | 20 | ||||||
3.3 | 0.91 | 18.6 | ||||||
20-160 | 1.8 | 0.5 | 33 | 1.5 | 2950 | 18.8 | 2.3 | 38 |
2.5 | 0.69 | 32 | ||||||
3.3 | 0.91 | 30 | ||||||
25-110 | 2.8 | 0.78 | 16 | 0.55 | 2950 | 41.2 | 2.3 | 31 |
4 | 1.11 | 15 | ||||||
5.2 | 1.44 | 13.5 | ||||||
25-125 | 2.8 | 0.78 | 20.5 | 0.75 | 2950 | 37.5 | 2.3 | 35 |
4 | 1.11 | 20 | ||||||
5.2 | 1.44 | 18 | ||||||
25-125A | 2.5 | 0.39 | 17 | 0.75 | 2950 | 36.6 | 2.3 | 35 |
3.6 | 1 | 16 | ||||||
4.6 | 1.28 | 14.5 | ||||||
25-160 | 2.8 | 0.78 | 33 | 1.5 | 2950 | 29.9 | 2.3 | 44 |
4 | 1.11 | 32 | ||||||
5.2 | 1.44 | 30 | ||||||
25-160A | 2.6 | 0.72 | 29 | 1.1 | 2950 | 29 | 2.3 | 40 |
3.7 | 1.03 | 28 | ||||||
4.9 | 1.36 | 26 | ||||||
32-100 | 3.5 | 0.97 | 14.5 | 0.55 | 2950 | 45.9 | 2.3 | 35 |
4.5 | 1.24 | 12.5 | ||||||
5.3 | 1.47 | 11 | ||||||
32-125 | 3.5 | 0.97 | 22 | 1.1 | 2950 | 42.2 | 2.3 | 38 |
5 | 1.39 | 20 | ||||||
6.5 | 1.8 | 18 | ||||||
32-125A | 3.1 | 0.86 | 20 | 0.75 | 2950 | 41.2 | 2.3 | 37 |
4.5 | 1.25 | 16 | ||||||
5.8 | 1.61 | 10 | ||||||
32-160 | 3.5 | 0.97 | 34 | 1.5 | 2950 | 32.8 | 2.3 | 49 |
4.5 | 1.25 | 32 | ||||||
6 | 1.67 | 26 | ||||||
32-160A | 3.5 | 0.97 | 26.5 | 1.1 | 2950 | 31.8 | 2.3 | 43 |
4.5 | 1.25 | 25 | ||||||
6 | 1.67 | 19 | ||||||
32-200 | 3.5 | 0.97 | 53 | 3 | 2950 | 23.8 | 2.3 | 68 |
4.5 | 1.25 | 50 | ||||||
5.5 | 1.53 | 45 | ||||||
32-200A | 3 | 1.08 | 43 | 2.2 | 2950 | 22.9 | 2.3 | 58 |
4 | 1.11 | 40 | ||||||
5 | 1.17 | 37 | ||||||
… … | ||||||||
400-300 | 820 | 228 | 23 | 90 | 1480 | 78.2 | 6 | 1450 |
1080 | 300 | 20 | ||||||
1300 | 361 | 16 | ||||||
400-315 | 820 | 228 | 36.5 | 132 | 1480 | 81.1 | 6 | 1740 |
1080 | 300 | 32 | ||||||
1300 | 361 | 27 | ||||||
400-450 | 1500 | 416.7 | 23 | 160 | 980 | 80.6 | 6.5 | 2420 |
2000 | 555.6 | 20 | ||||||
2400 | 666.7 | 15 | ||||||
400-450A | 1400 | 388.9 | 20 | 132 | 980 | 79.3 | 6.5 | 1940 |
1860 | 516.7 | 17 | ||||||
2250 | 625 | 14 | ||||||
400-500 | 1500 | 416.7 | 34 | 250 | 980 | 82.8 | 6.5 | 2980 |
2000 | 555.6 | 32 | ||||||
2400 | 666.7 | 27 | ||||||
400-500A | 1400 | 388.9 | 30 | 200 | 980 | 81.9 | 6.5 | 2840 |
1860 | 516.7 | 28 | ||||||
2240 | 625 | 24 | ||||||
400-500B | 1300 | 361.1 | 26 | 160 | 980 | 80.9 | 6.5 | 2710 |
1750 | 486.4 | 24 | ||||||
2100 | 583.3 | 21 | ||||||
500-300 | 1000 | 277.8 | 23 | 110 | 1480 | 81.7 | 6 | 1800 |
1200 | 333 | 20 | ||||||
1450 | 403 | 16 | ||||||
500-315 | 1000 | 277.8 | 34.5 | 160 | 1480 | 80.9 | 6 | 2070 |
1200 | 333 | 32 | ||||||
1450 | 403 | 27 |
Parameter table above is only a part of whole. For more, please contact us directly.
