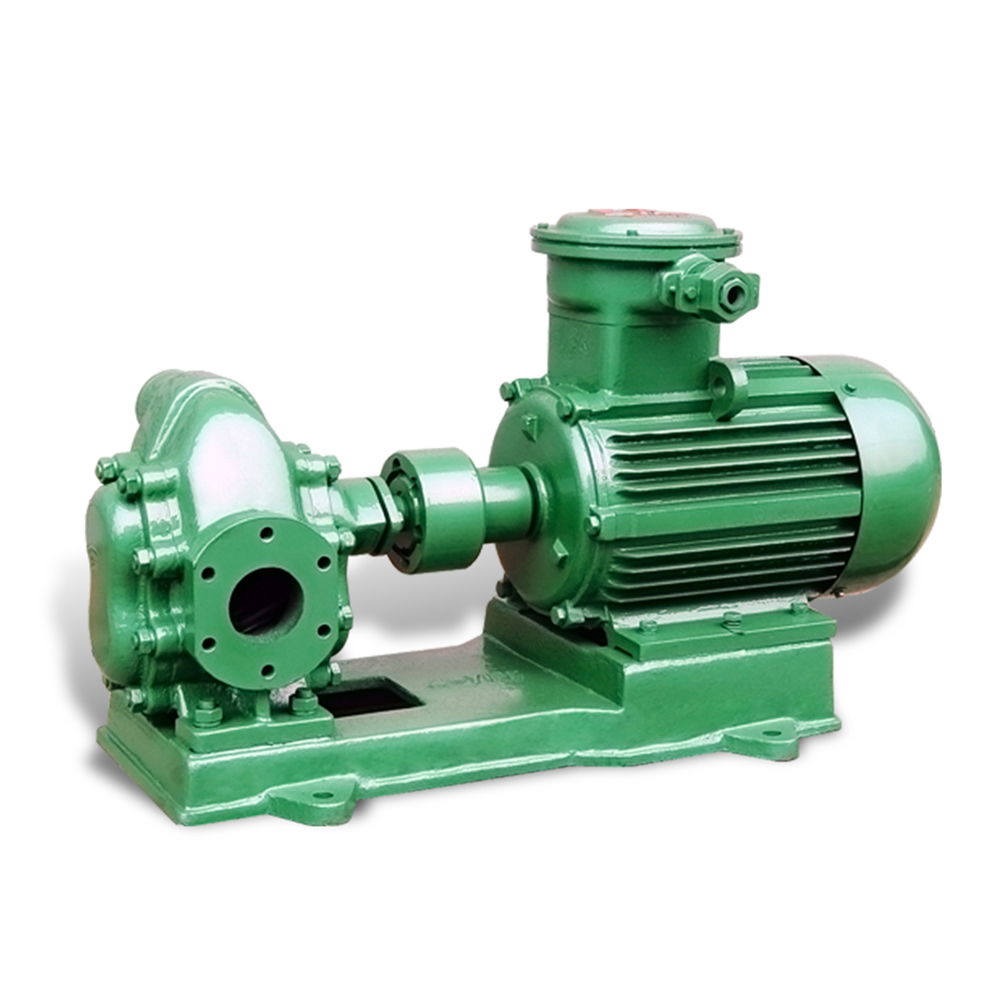

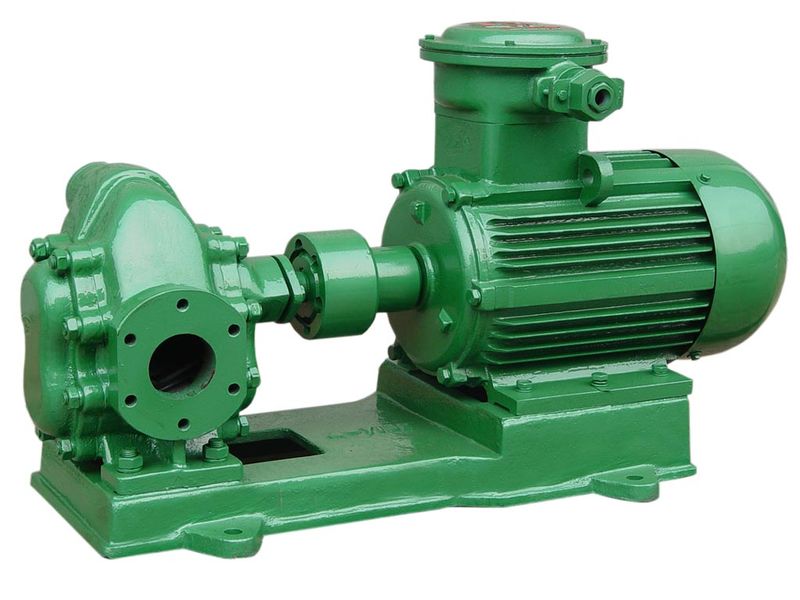

KCB Gear Pump

KCB gear pump widely used in oil depots, docks, ships, etc for pumping oil.

Description

Introduction:

  1. KCB gear pump is capable of delivering non-corrosive oil that without solid particles & fiber. Such as lube, heavy oil, industry light oil, cooking oil, etc.
  2. It can pump low flash point liquid when equipped with bronze gears.
  3. It’s horizontal reverse pump and is composed of casing, gear, bearing seat, relief valve, bearing and sealing device and so on.
  4. The casing & bearing seat are made of cast iron.
  5. It’s widely used in oil depots, docks, ships, etc.

Product details:

Working Principle: Double Gears
Main applications: Oil, food oil(SS), Lubricating fluid
Driver: Electric motor, diesel motor.
Power Specs: 220/380/415/440V 3phase; 110/220/240V single phase;  50hz/60hz,etc
Max. permissible fluid temperature: 80°C/300°C(SS with high temp seal)
Type of connection: Flange, Thread, Quick Coupled.
Installation position: Horizontal
Casing/Inner parts material: Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type: Oil seal, F4 seal, Mechanical seal;
Free passage: 00 mm
Maximum viscosity: 1.5×103CST
Maximum drive rating: 75KW(100HP)
Maximum caliber: 150mm(6inch)
Maximum discharge-side pressure: 1.45Mpa(14.5bar)
Flow rate range: 18.3-2500L/min(4.8-660US.GPM)



Performance data:

Model Caliber

(Inch)

Capacity

(L/min)

Pressure

(MPa)

Power

(KW)

Custom services
KCB-18.3 3/4″ 18.3 1.45 1.5 110V, 220V, 380V,

400V, 415V, 440V

50Hz or 60Hz

Single phase

Or three phase



Ordinary motor

EX motor

Electromagnetic

variable speed motor

Frequency variable

Speed motor



Cast iron

SS304 SS316



Thread

Flange



Insulation jacket

Electric heating rod

Trolley



Magnetic drive non-leakage type

KCB-33.3 3/4″ 33.3 1.45 2.2
KCB-55 1″ 55 0.33 1.5
KCB-55 1″ 55 0.5 2.2
KCB-83.3 1 1/2″ 83.3 0.33 2.2
KCB-83.3 1 1/2″ 83.3 0.5 3
KCB-200 2″ 200 0.33 4
KCB-200 2″ 200 06 5.5
KCB-300 3″ 300 0.33 5.5
KCB-300 3″ 300 0.6 7.5
KCB-483.3 3″ 483.3 0.33 7.5
KCB-483.3 3″ 483.3 0.6 11
KCB-633 4″ 633 0.28 11
KCB-633 4″ 633 0.6 22
KCB-960 4″ 960 0.3 18.5
KCB-960 4″ 960 0.6 30
KCB-1667 6″ 1667 0.3 30
KCB-1667 6″ 1667 0.6 55
KCB-2000 6″ 2000 0.3 30
KCB-2000 6″ 2000 0.6 55
KCB-2500 6″ 2500 0.3 37
KCB-2500 6″ 2500 0.7 75
