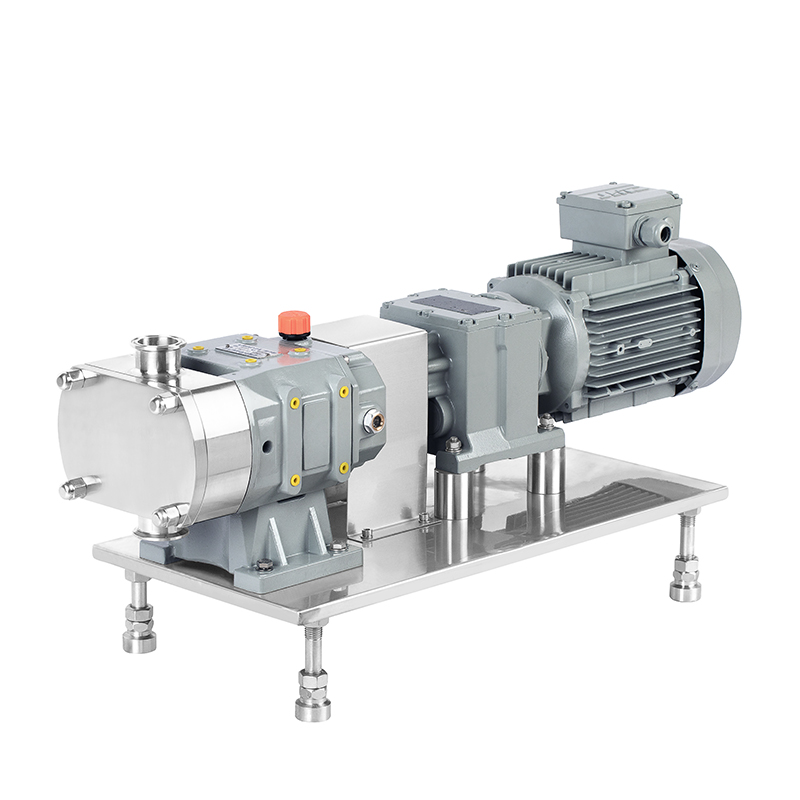

Molasses Pump

Molasses pump is special designed for liquid sugar, vegetable oil, edible oil, molasses, chocolate, cooking oil, paste, milk, fruit, etc.

Description

Introduction:

Molasses Pump is a positive displacement pump, which has two rotors in the pump head. The two rotors fixed on two shafts and rotate syn-chronically in counter direction. The rotation creates vacuum volume on the inlet side. The liquid is sucked into the pump head and travels around in the chamber between the rotor and the pump head casing, and is forced out on the outlet side.

Molasses Pump is special designed for liquid sugar, vegetable oil, edible oil, molasses, chocolate, cooking oil, paste, milk, fruit, etc.

Product details:

Working Principle: Double rotors
Main applications: Oil, food, colloid
Driver: Electric motor
Power Specs: 220V,240V,380V,400V,415V,440V  50hz/60hz
Max.permissible fluid temperature: 100°C(212°F) / 200°C(392°F)-water cool type
Type of connection: Quick clamp, Flange, Thread, SMS, Barb, Square port
 Position of inlet/outlet: Horizontal or Vertical
Casing/Inner parts material: SS304, SS316L
Shaft seal type: Mechanical seal
Maximum viscosity: 1×106 C.S.T
Maximum drive rating: 30kW(40HP)
Maximum caliber: 125mm(5inch)
Maximum discharge-side pressure: 1.6MPa(16bar)
Suction pressure 0.08Mpa(0.8bar)
Flow rate range: 0.3-72m3/h(1.3-316.8US.GPM)



Performance data:

Model L/R RPM Flow

L/H

Pressure Mpa Viscosity

CP

Power

KW

Caliber

mm

RP1 0.05 40~700 0-1000 1.0 1-1000000 0.25-1.5 1”
RP2 0.1 40~700 200-2000 1.2 1-1000000 0.55-2.2 1.25”
RP3 0.17 40~500 400-3000 1.2 1-1000000 0.75-3.0 1.5”
RP5 0.26 40~500 600-5000 1.5 1-1000000 1.5-5.5 2”
RP8 0.46 40~450 1000-8000 1.5 1-1000000 2.2-11 2.5”
RP12 0.70 40~450 1600-12000 1.5 1-1000000 3.0-15 2.5”
RP20 1.2 40~400 2800-20000 1.5 1-1000000 4.0-18.5 3”
RP35 0.35 40~400 5000-35000 1.5 1-1000000 7.5-30 4”
RP55 0.42 40~350 10000-55000 1.5 1-1000000 11-45 DN125
RP80 0.52 40~350 16000-80000 1.5 1-1000000 7.5 DN150
RP120 0.72 40~300 26000-120000 1.5 1-1000000 7.5 DN150
