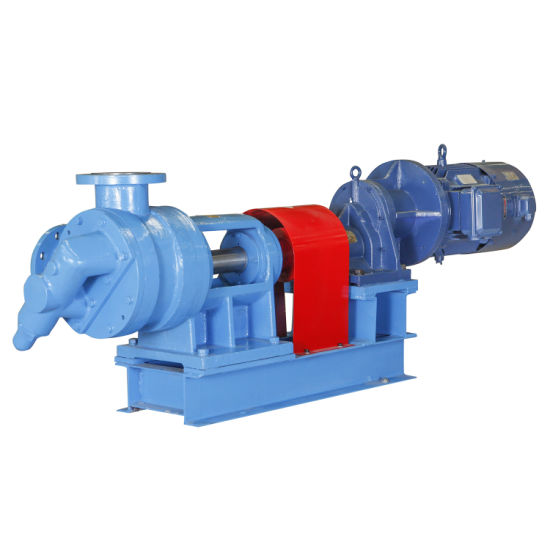

NYP Internal Gear Pump
NYP internal gear pump widely used in petroleum chemical industry, pharmacy, smelt, electroplate, environmental protection, food industry, film processing, water treatment, etc.
Description
Introduction:
1. NYP High viscosity liquid transfer internal gear oil pump paint transfer pump is similar to US Viking pump: it is stable, pulseless, with small vibration and low noise.
2. It also has a good self-priming ability, which is able to transfer paint, coating, glue, resin, polyurethane, poly-aether, polyethylene or something similar.
3. Special provide double jacket type, pump can get heated by heat steam, thermal oil.
4. The paint transfer pump can be equipped with gear box motor for high viscosity fields.
Product details:
Working Principle: | Double gears |
Main applications: | Oil |
Driver: | Electric motor, gearbox, diesel engine. |
Power Specs: | 220/380/415V 3phase; 50hz/60hz |
Max.permissible fluid temperature: | 200°C(392°F) |
Type of connection: | Flange, Thread, |
Installation position: | Horizontal |
Casing parts material: | Cast iron, Stainless Steel |
Shaft seal type: | Mechanical seal; Rubber seal |
Free passage: | 00 mm |
Maximum viscosity: | 6X104C.S.T |
Maximum drive rating: | 68KW(90HP) |
Maximum caliber: | 200mm(8inch) |
Maximum discharge-side pressure: | 1.0Mpa(10bar) |
Flow rate range: | 6.1-3626L/min(1.6-957.3US.GPM) |
Performance data:
Model | Displacement | Viscosity | Speed | Capacity | Pressure | Caliber | Suction | Shaft power |
(L/100rev) | (c.s.t) | (r/min) | (L/min) | (MPa) | (mm) | (m) | (KW) | |
NYP-0.78 | 0.78 | 600/2000 | 1390/910 | 6.8/6.1 | 0.6 | 15 | 5 | 0.27/0.31 |
NYP-2.3 | 2.3 | 600/2000 | 1400/910 | 31.7/19.7 | 0.6 | 25 | 5 | 0.96/0.68 |
NYP-3.6 | 3.6 | 600/2000 | 1450/960 | 49.3/33.7 | 0.8 | 40 | 5 | 1.77/1.54 |
NYP-7.0 | 7 | 2000/6000 | 960/640 | 65/44 | 0.8 | 40 | 5 | 2.3/1.8 |
NYP-24 | 24 | 2000/6000 | 475/357 | 110/83 | 0.8 | 50 | 5 | 2.9/2.6 |
NYP-50 | 50 | 2000/6000 | 475/357 | 237-181 | 0.8 | 50 | 5 | 6.6/5.3 |
NYP-80 | 80 | 2000/6000 | 417/305 | 319/326 | 0.8 | 80 | 5 | 8.9/7.5 |
NYP-110 | 110 | 2000/6000 | 417/305 | 447/331 | 0.8 | 80 | 5 | 11.0/9.4 |
NYP-160 | 160 | 2000/6000 | 355/319 | 552/500 | 0.8 | 100 | 5 | 13.0/13.5 |
NYP-220 | 220 | 6000/20000 | 244/160 | 473/343 | 0.8 | 100 | 5 | 13.6/11.9 |
NYP-320 | 320 | 20/60 | 430/430 | 1200/1225 | 1 | 125 | 5 | 26.0/26.5 |
NYP-320 | 320 | 6000/20000 | 222/168 | 675/522 | 0.8 | 125 | 5 | 18.7/17.3 |
NYP-440 | 440 | 20/60 | 360/360 | 1378/1401 | 1 | 150 | 5 | 29.8/27 |
NYP-440 | 440 | 6000/20000 | 200/145 | 832/610 | 0.8 | 150 | 5 | 20.8/17.9 |
NYP-650 | 650 | 20/60 | 315/315 | 1794/1832 | 0.8 | 125 | 5 | 33.0/33.2 |
NYP-650 | 650 | 20000/60000 | 117/100 | 731/640 | 0.8 | 125 | 5 | 19.1/19.5 |
NYP-730 | 730 | 20/60 | 315/315 | 1980/2026 | 0.8 | 150 | 5 | 37.3/37.3 |
NYP-730 | 730 | 20000/60000 | 125/100 | 868/731 | 0.8 | 150 | 5 | 23.3/22.3 |
NYP-1670 | 1670 | 20/60 | 250/250 | 3529/3626 | 0.8 | 200 | 5 | 66/68 |
NYP-1670 | 1670 | 20000/60000 | 112/85 | 1790/1972 | 0.8 | 200 | 5 | 48.0/40.6 |
