PE/FEP lined Chemical Slurry Pump
widely used in Phosphoric acid slurry, fluorosilicic acid with silica gel, mother liquor, etc.; various acids for wet smelting of zinc and lead, gold, silver, copper, manganese and cobalt rare earths, corrosive slurry electrolytes; pickling systems, sewage with impurities and other industries, both for clear slurry and slurry.
Description
Product introduction:
- PE/FEP Lined slurry pump is working for highly corrosive mediums between -85°C~120°C (-121°F~248°F), such as arbitrary concentration of vitriol, muriatic acid, hydrofluoric acid, nitric acid, aqua regia, strong base, strong oxidant, organic solvent, reducing agent, etc.
- Casing is metal lined with PE/FEP. Cover, impeller and shaft sleeve is metal insert with fluorine plastic jacket, inlet & outlet is strengthened with cast steel. All wet parts of pump are made of fluorine plastic.
- MIP is wearing resistant, corrosion resistant, thermos table, non-aging, strong mechanical strength, running stable, advanced in structure, sealing reliable, easy to maintain and long service life.
- MIP pump is widely used in Phosphoric acid slurry, fluorosilicic acid with silica gel, mother liquor, etc.; various acids for wet smelting of zinc and lead, gold, silver, copper, manganese and cobalt rare earths, corrosive slurry electrolytes; pickling systems, sewage with impurities and other industries, both for clear slurry and slurry.
Product details:
|
Model Type
|
MIP (horizontal single stage end suction fluorine plastic PE/FEP lined chemical transfer acid alkaline salty solution resistant non clogging centrifugal slurry mortar pump)
|
|
Flow
|
15-200m3/h
|
|
Head
|
25-65m
|
|
Power
|
4-75kw
|
|
EFF
|
42%-70%
|
|
Inlet/outlet
|
50*40mm-125*100mm
|
|
NPSHr
|
3.2-4.8m
|
|
Weight
|
110-980kg
|
|
Speed
|
2900r/min
|
|
Voltage
|
200V-600V, 50Hz-60Hz or as customer required
|
|
Connection
|
Flange butt joint(GB)
|
|
Temperature range
|
-30℃ to 120℃
|
|
Brand Name
|
JUSHI PUMP
|
|
Introduction
|
MIP series of cantilever centrifugal pumps made of polymeric polyethylene,metal material,plus cooling water unit.
|
|
Medium
|
Phosphoric acid slurry, fluorosilicic acid with silica gel, mother liquor, etc.; various acids for wet smelting of zinc and lead, gold, silver, copper, manganese and cobalt rare earths, corrosive slurry electrolytes; pickling systems, sewage with impurities and other industries, both for clear slurry and slurry.
|
|
Product uses
|
Use of various acids,corrosive electrolytes,pickling systems,sewage systems,etc.
|

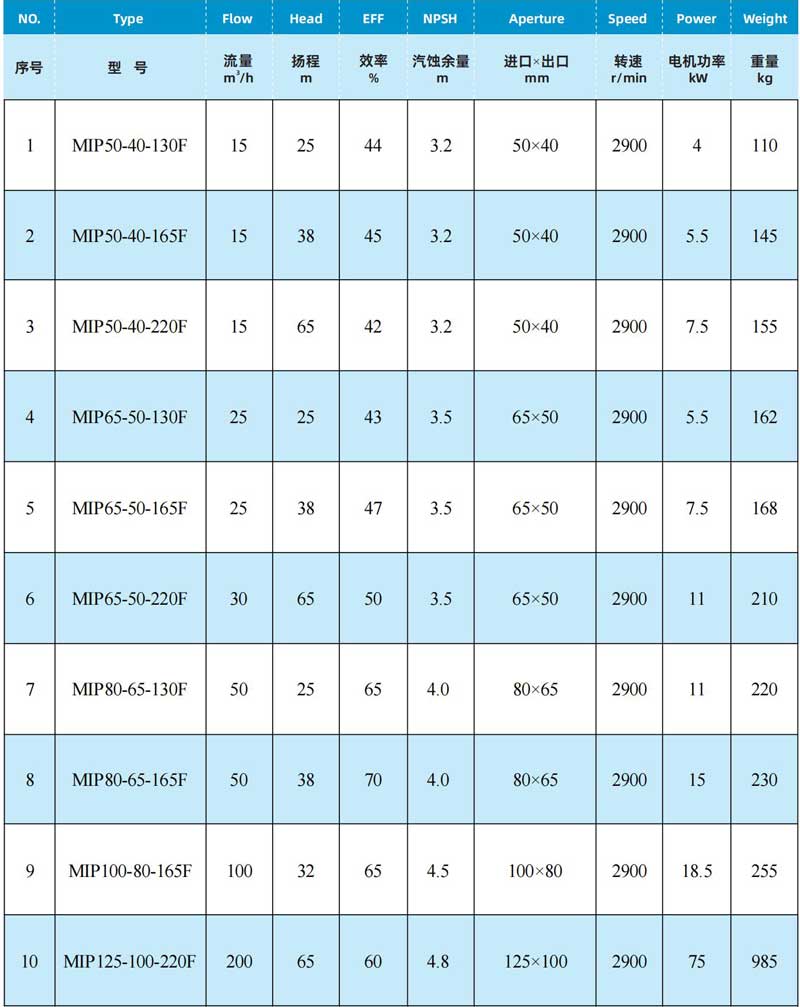

Performance data:
Parameter table above is only a part of whole. For more, please contact us directly.
