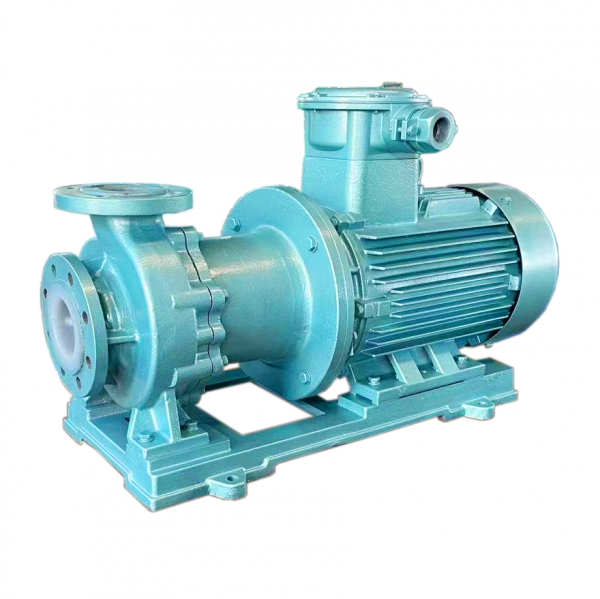

TMF PTFE Lined Industrial Magnetic Drive Pump
PTFE Lined industrial magnetic drive pump widely used in petrochemical industry, acid/alkali plant, non-ferrous metal metallurgy, pickling in automobile manufacture, rare earth separation, pesticide/dye/medicine/papermaking industry, electroplated/radio industry, etc.
Description
Introduction:
- TMF Lined industrial magnetic Drive pump the best acid resistant pump wet parts are made of PTFE(Teflon), it is with strong corrosion resistance, strong mechanical strength and is without ageing and toxin decomposition.
- This pump is specially designed that won’t leak without mechanical axis.
- Widely used in petrochemical industry, acid/alkali plant, non-ferrous metal metallurgy, pickling in automobile manufacture, rare earth separation, pesticide/dye/medicine/papermaking industry, electroplated/radio industry, etc.
Product details:
Working Principle: | Centrifugal, Magnetic |
Main applications: | Chemical, stronger aicd/lkali |
Driver: | Electric motor |
Power Specs: | 110V/230V single phase, 220V/380/440V 3phase, 50hz/60hz, |
Motor type: | Ordinary motor, EX motor, Frequency motor |
Max.permissible fluid temperature: | 100°C(212°F) |
Type of connection: | Flange, Hose |
Installation position: | Horizontal |
Casing/Inner parts material: | Cast iron shell lined with PTFE(Teflon) or PFA |
Shaft seal type: | No seal, no leakage |
Maximum drive rating: | 18.5KW(25HP) |
Maximum Inlet/Out DN: | 100mm(4inch)/80mm(3inch) |
Maximum discharge-side pressure: | 0.32MPa(3.2bar) |
Maximum head: | 32m(105ft) |
Flow rate range: | 1.8-100m3/h(7.9-440 US.GPM) |
Performance data:
Type
|
Flow
(m³/h)
|
Head
m
|
Eff
%
|
NPSHr
m
|
Aperture
mm
|
Speed
r/min
|
Power
kW
|
32TMF-20
|
3.6
|
20
|
18
|
3
|
32×20
|
2900
|
1.1
|
32TMF-32
|
3.6
|
32
|
20
|
3
|
32×20
|
2900
|
2.2
|
40TMF-20
|
6.3
|
20
|
28
|
3
|
40×25
|
2900
|
1.5
|
40TMF-32
|
6.3
|
32
|
26
|
3
|
40×25
|
2900
|
3
|
40TMF-50
|
6.3
|
50
|
30
|
3
|
40×25
|
2900
|
5.5
|
40TMF-80
|
6.3
|
80
|
35
|
3
|
40×32
|
2900
|
11
|
50TMF-20
|
12.5
|
20
|
56
|
3.2
|
50×32
|
2900
|
1.5
|
50TMF-32
|
12.5
|
32
|
46
|
3.2
|
50×32
|
2900
|
4
|
50TMF-50
|
12.5
|
50
|
43
|
3.2
|
50×32
|
2900
|
7.5
|
50TMF-80
|
12.5
|
80
|
36
|
3.2
|
50×32
|
2900
|
11
|
65TMF-20
|
25
|
20
|
55
|
3.5
|
65×50
|
2900
|
3
|
65TMF-25
|
18
|
25
|
57
|
3.5
|
65×50
|
2900
|
4
|
65TMF-32
|
25
|
32
|
52
|
3.5
|
65×50
|
2900
|
5.5
|
65TMF-50
|
25
|
50
|
46
|
3.5
|
65×40
|
2900
|
11
|
65TMF-80
|
25
|
80
|
47
|
3.5
|
65×40
|
2900
|
18.5
|
80TMF-20
|
50
|
20
|
45
|
4.5
|
80×65
|
2900
|
5.5
|
80TMF-32
|
50
|
32
|
48
|
4.5
|
80×65
|
2900
|
11
|
80TMF-50
|
50
|
50
|
56
|
4.5
|
80×50
|
2900
|
15
|
80TMF-80
|
50
|
80
|
53
|
4.5
|
80×50
|
2900
|
30
|
100TMF-20
|
100
|
20
|
54
|
5
|
100×80
|
2900
|
15
|
100TMF-32
|
100
|
32
|
56
|
5
|
100×80
|
2900
|
18.5
|
100TMF-40
|
100
|
40
|
51
|
5
|
100×80
|
2900
|
30
|
125TMF-15
|
170
|
15
|
37
|
5.5
|
125×100
|
2900
|
22
|
125TMF-20
|
170
|
20
|
38
|
5.5
|
125×100
|
2900
|
30
|
125TMF-30
|
190
|
30
|
45
|
5.5
|
125×100
|
2900
|
37
|
125TMF-40
|
200
|
40
|
57
|
5.5
|
125×100
|
2900
|
45
|
125TMF-50
|
200
|
50
|
60
|
5.5
|
125×100
|
2900
|
55
|
