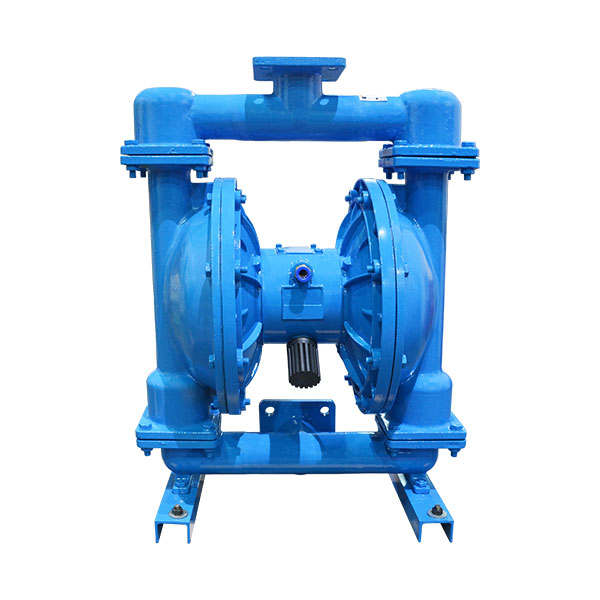

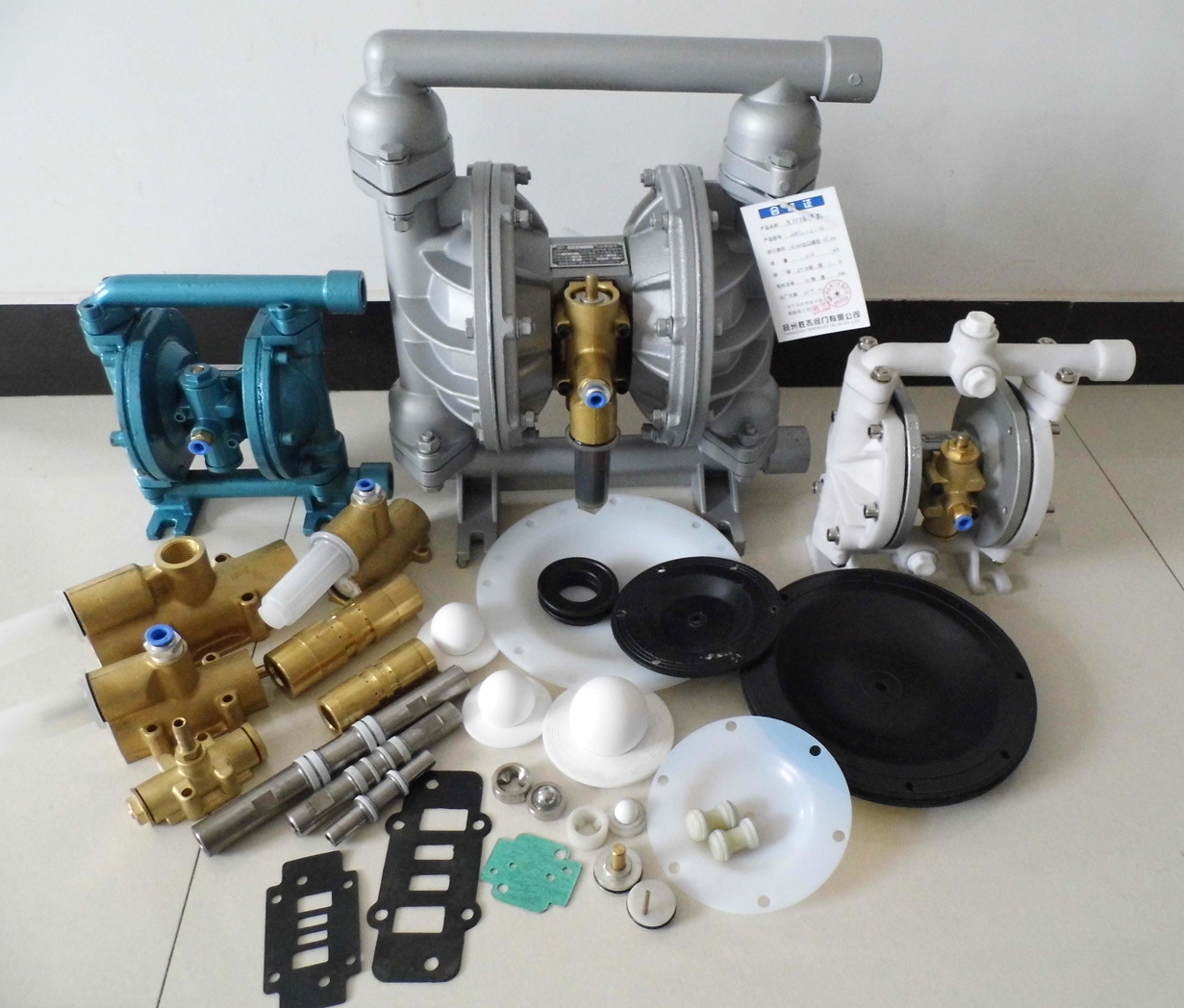

QBY Air Operated Double Diaphragm Pump

Description

Introduction:

QBY air operated double diaphragm pumps is not only capable of exhausting the flow liquid , but also can convey some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.

Advantage:

* No electricity. It’s safe and reliable while in the flammable and explore places.

* Pump has no rotary parts and bearing seals. The diaphragm will completely separate the exhausted medium and pump running parts, working medium. There’s no leakage, thus it doesn’t cause environmental pollution and human body safety dangerous while exhausting the toxin and flammable or corrosive medium.

* It’s convenient to use and reliable to work. This pump is simple in structure and easy to be installed and maintained.

The medium conveyed doesn’t touch the matched pneumatic valve and coupling lever etc. While normal pumps’ performance will be decreased gradually because of the damages of driving parts.

* This pump doesn’t need oil lubricant, even works in dry run.



Product application:

* Pumping various toxin, flammable, volatility  strong acid, alkali and corrosive liquid etc.

* Pump may suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops, syrup, paint, pigment, glue,  adhesive, glazed slurries of tile, porcelain, brick, chinaware, grinding materials, corrosive agent, clean the oil dirt, wedge water, cement slurry and mortar etc.

* It can be used as a front-step transmission device of the solid and liquid separation equipment.



Product details:

Working Principle:	Double Diaphragms, Pneumatic
Main applications:	Oil, Water, Chemical, etc.
Driver:	Air Operated
Max.permissible fluid temperature:	150°C(302°F)
Type of connection:	Flange, Thread, Quick coupled
Installation position:	Connect to compressor
Casing parts material:	C.I, S.S, PP, Aluminium, PVDF, PTFE linning
Maximum grain diameter:	10mm (3/8inch)
Maximum drive rating:	7kgf/cm2
Maximum caliber:	100mm(4inch)
Maximum discharge-side pressure:	6kgf/cm2
Maximum head:	50m(164ft)
Flow rate range:	0.8-30m3/h(3.5-132US.GPM)



Performance Data:

Model	Size (“)	Capactiy (m3/h)	Head (m)	Suction Head (m)	Max Grain Dia. (mm)	Air Pressure (Kgf/cm2)
QBY-10	3/8″	0~0.8	0~60	5	1	7
QBY-15	1/2″	0~1		5	1
QBY-25	1″	0~2.4		7	2.5
QBY-40	1-1/2″	0~8		7	4.5
QBY-50	2″	0~12		7	8
QBY-65	2-1/2″	0~16		7	8
QBY-80	3″	0~24		7	10
QBY-100	4″	0~30		7	10
