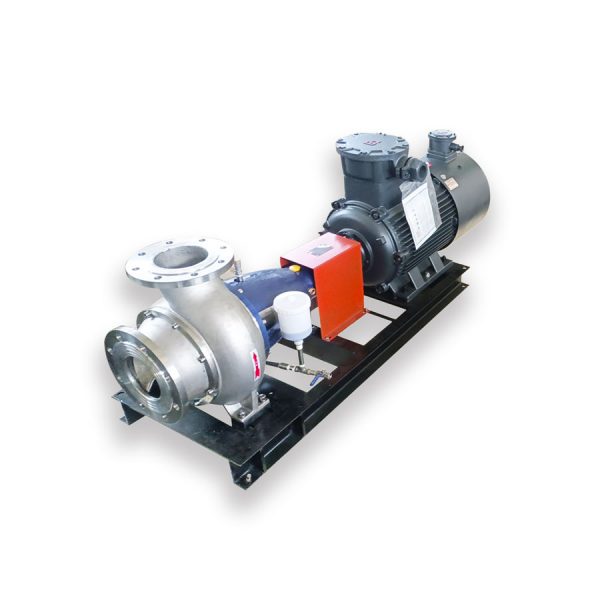

Screw Centrifugal Pump

Description

Screw Centrifugal Pump Characteristic :

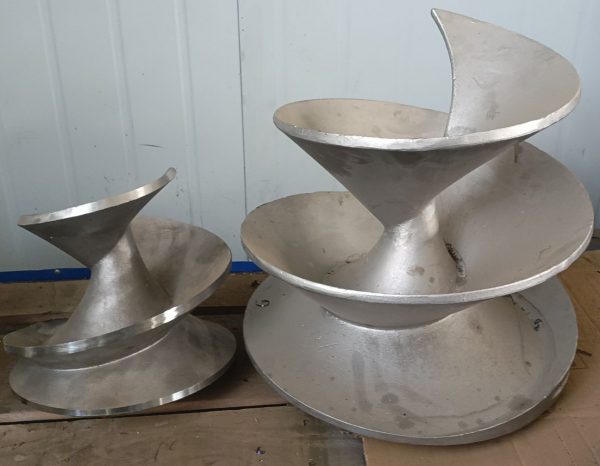

True non clogging performance: screw centrifugal pumps have extraordinary non clogging performance. The open channel of the pump has the characteristics of high efficiency and no blockage, making it easier to transport large volume solids and long fiber materials. Ordinary so-called unobstructed centrifugal pumps often get stuck at the edges of the blades or become stuck or blocked between the inlet and outlet when long fibers and solids enter the channel, causing mechanical failures. Equipped with screw centrifugal impellers, these problems do not exist. The screw impeller will rotate into the soft solid on its own, preventing the filling material from clogging at the inlet, and the inner wall of the suction port and the back of the impeller are also designed with reverse threaded grooves to prevent fiber accumulation.

Soft conveying medium: Another advantage of the spiral design is “soft conveying”, which means that solid substances flow through without hitting any part of the pump. This advantage applies to the following areas: conveying active loose materials, which can maintain their original physical state, and loose materials will not be torn or broken. The oil in the lotion can maintain its specific characteristic state. Suspended fibers will not be twisted or entangled. Fragile (fragile) items such as tomatoes, live fish, etc. will not be damaged.

Outstanding operating curve: high efficiency=low operating cost; Steep performance curve=smooth operation; Low net suction head=high self suction capacity; Smooth power curve=no overload area; High speed=compact structure

High solid content medium processing capacity.

Screw Centrifugal Pump Applications :
