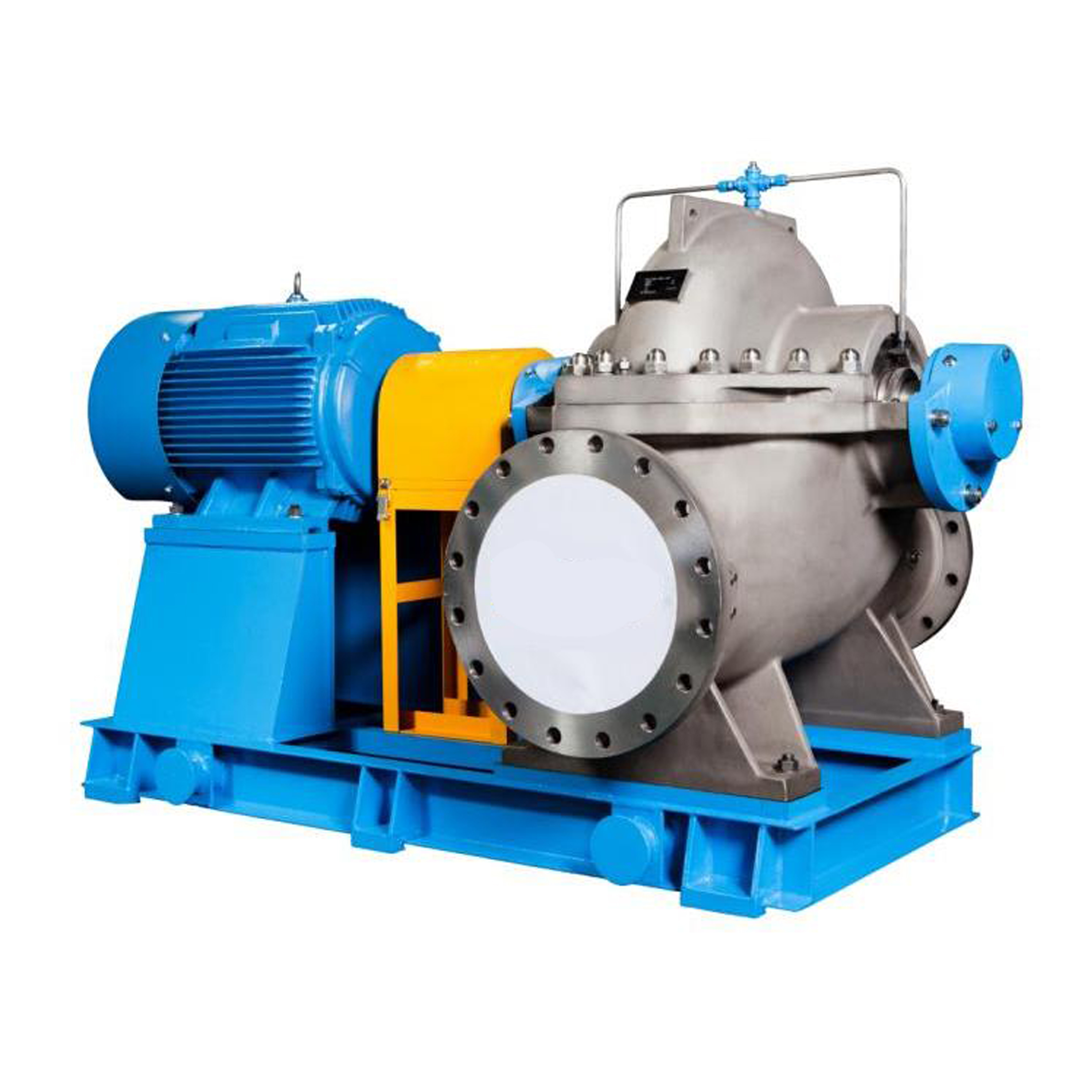

Single Stage Double Suction Split Casing Pump
S,XS single stage double suction split case are widely used in delivering liquids to the water plant,circulation water system of airconditioner,pipe net syetem of supplying heated water,construction,drainage pumping station,power station,industrial water supply system,ship industry,mine and etc.
Description
Summarize:
1.Split Case type big flow Electric Motor water pump for agriculture use is a single stage double suction split casing pump with high capacity and pressure, which can transmit clean water or similar liquids(Oil).
2. S,XS single stage double suction split case are widely used in delivering liquids to the water plant,circulation water system of airconditioner,pipe net syetem of supplying heated water,construction,drainage pumping station,power station,industrial water supply system,ship industry,mine and etc.
Product details:
Pump Type | Split Casing Pump |
Casing Material | HT200 |
Impeller | SS304,SS316,Copper,HT200 |
Pump Sealing | Packing seal,Mechanical seal |
Capacity Range | 126m3/h~8520m3/h |
Head Range | 8m~140m |
Inlet/Outlet diameter | 6″(150mm)~32″(800mm) |
Rotary Speed | 1450rmp/2950rpm/585rpm/730rpm/970rpm |
NPSH(r) | 2.5m~7.5m |
N.weight | 165kgs~2550kgs |
Pump Parts | Casing,Pump cover,Impeller,Shaft, Double suction sealing ring
Shaft sleeve,Bearing etc |
Certificate | ISO9001:2008,CE,TUV |
Performance data:
Model | CapacityQ | HeadH | Speed n | Power(KW) | effeciencyη | NPSH r (m) | |
( m3/h) | (m) | (r/min) | aix power | motor power | (%) | ||
100S90 | 80 | 90 | 2950 | 30.1 | 37 | 65 | 2.5 |
100S90A | 72 | 75 | 23 | 30 | 64 | 2.5 | |
150S100 | 160 | 100 | 59.8 | 75 | 73 | 3.5 | |
150S78 | 160 | 78 | 45 | 55 | 73.5 | 3.5 | |
150S78A | 144 | 62 | 33.8 | 45 | 72 | 3.5 | |
150S50 | 160 | 50 | 27.3 | 37 | 80 | 3.9 | |
150S50A | 144 | 40 | 20.9 | 30 | 75 | 3.9 | |
150S50B | 133 | 36 | 18.6 | 22 | 70 | 3.9 | |
200S95 | 280 | 95 | 91.7 | 110 | 79.2 | 5.3 | |
200S95A | 270 | 75 | 73.5 | 90 | 75 | 5.3 | |
200S63 | 280 | 63 | 58.3 | 75 | 82.7 | 5.8 | |
200S63A | 270 | 46 | 45.1 | 55 | 75 | 5.8 | |
200S42 | 280 | 42 | 38.1 | 45 | 84.2 | 6 | |
200S42A | 270 | 36 | 33.1 | 37 | 80 | 6 | |
250S65 | 485 | 65 | 1450 | 109 | 132 | 78.6 | 3 |
250S65A | 468 | 54 | 89.4 | 110 | 77 | 3 | |
250S39 | 485 | 39 | 61.5 | 75 | 83.6 | 3.2 | |
250S39A | 468 | 30.5 | 49.3 | 55 | 79 | 3.2 | |
250S24 | 485 | 24 | 36.9 | 45 | 85.8 | 3.5 | |
250S24A | 414 | 20.3 | 27.6 | 37 | 83 | 3.5 | |
250S14 | 485 | 14 | 21.5 | 30 | 85.8 | 3.8 | |
250S14A | 432 | 11 | 15.8 | 18.5 | 82 | 3.8 | |
300S110 | 790 | 110 | 295.7 | 440 | 80 | 4 | |
300S90 | 790 | 90 | 242.8 | 315 | 79.6 | 4 | |
300S90A | 756 | 78 | 217 | 280 | 74 | 4 | |
300S90B | 720 | 67 | 180 | 220 | 73 | 4 | |
300S58 | 790 | 58 | 149.9 | 180 | 84.2 | 4.4 | |
300S58A | 720 | 49 | 118.6 | 160 | 81 | 4.4 | |
300S58B | 684 | 43 | 100 | 132 | 80 | 4.4 | |
300S32 | 790 | 32 | 79.2 | 110 | 86.8 | 4.6 | |
300S32A | 720 | 26 | 60.7 | 75 | 84 | 4.6 | |
300S19 | 790 | 19 | 47 | 55 | 86.8 | 5.2 | |
300S19A | 720 | 16 | 39.2 | 45 | 80 | 5.2 | |
300S12 | 790 | 12 | 30.4 | 37 | 84.8 | 5.5 | |
300S12A | 684 | 10 | 3.9 | 30 | 78 | 5.5 | |
350S125 | 1260 | 125 | 534 | 710 | 80.5 | 5.4 | |
350S125A | 1181 | 112 | 462 | 630 | 78 | 5.4 | |
350S125B | 1098 | 96 | 373 | 500 | 77 | 5.4 | |
350S75 | 1260 | 75 | 303 | 355 | 85.2 | 5.8 | |
350S75A | 1170 | 65 | 247 | 280 | 84 | 5.8 | |
350S75B | 1080 | 55 | 197 | 220 | 82 | 5.8 | |
350S44 | 1260 | 44 | 173 | 220 | 87.5 | 6.3 | |
350S44A | 1116 | 36 | 131 | 160 | 84 | 6.3 | |
350S26 | 1260 | 26 | 102 | 132 | 87.5 | 6.7 | |
350S26A | 1116 | 21.5 | 78.8 | 90 | 83 | 6.7 | |
350S16 | 1260 | 16 | 64.5 | 75 | 85.3 | 7.1 | |
350S16A | 1044 | 13.4 | 48.8 | 55 | 48 | 7.1 | |
500S98 | 2020 | 95 | 970 | 678 | 800 | 79.5 | 4 |
500S98A | 1872 | 83 | 540 | 630 | 78.5 | 4 | |
500S98B | 1746 | 74 | 452 | 560 | 78 | 4 | |
500S59 | 2020 | 59 | 391 | 450 | 83 | 4.5 | |
500S59A | 1872 | 49 | 333 | 400 | 75 | 4.5 | |
500S59B | 1746 | 40 | 257 | 315 | 74 | 4.5 | |
500S35 | 2020 | 35 | 219 | 280 | 88 | 4.8 | |
500S35A | 1746 | 27 | 151 | 220 | 85 | 4.8 | |
500S22 | 2020 | 22 | 144.1 | 185 | 84 | 5.2 | |
500S22A | 1746 | 17 | 101 | 132 | 80 | 5.2 | |
500S13 | 2020 | 13 | 86.2 | 110 | 83 | 5.7 | |
600S75 | 3170 | 75 | 727 | 800 | 89 | 7.5 | |
600S75A | 2880 | 65 | 580 | 630 | 88 | 7.5 | |
600S47 | 3170 | 47 | 465 | 560 | 88 | 7.5 | |
600S32 | 3170 | 32 | 310 | 400 | 89 | 7.5 | |
600S32A | 2880 | 27 | 238 | 280 | 89 | 7.5 | |
600S22 | 3170 | 22 | 223 | 280 | 85 | 7.5 | |
600S22A | 2880 | 18.2 | 168.5 | 200 | 84.5 | 7.5 |
