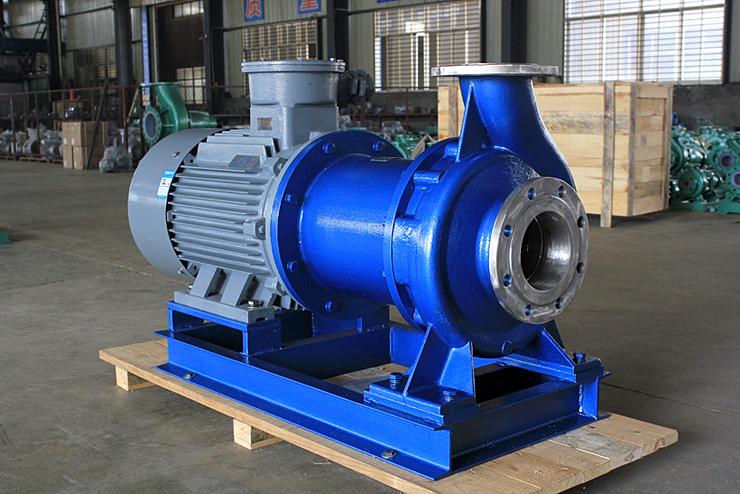

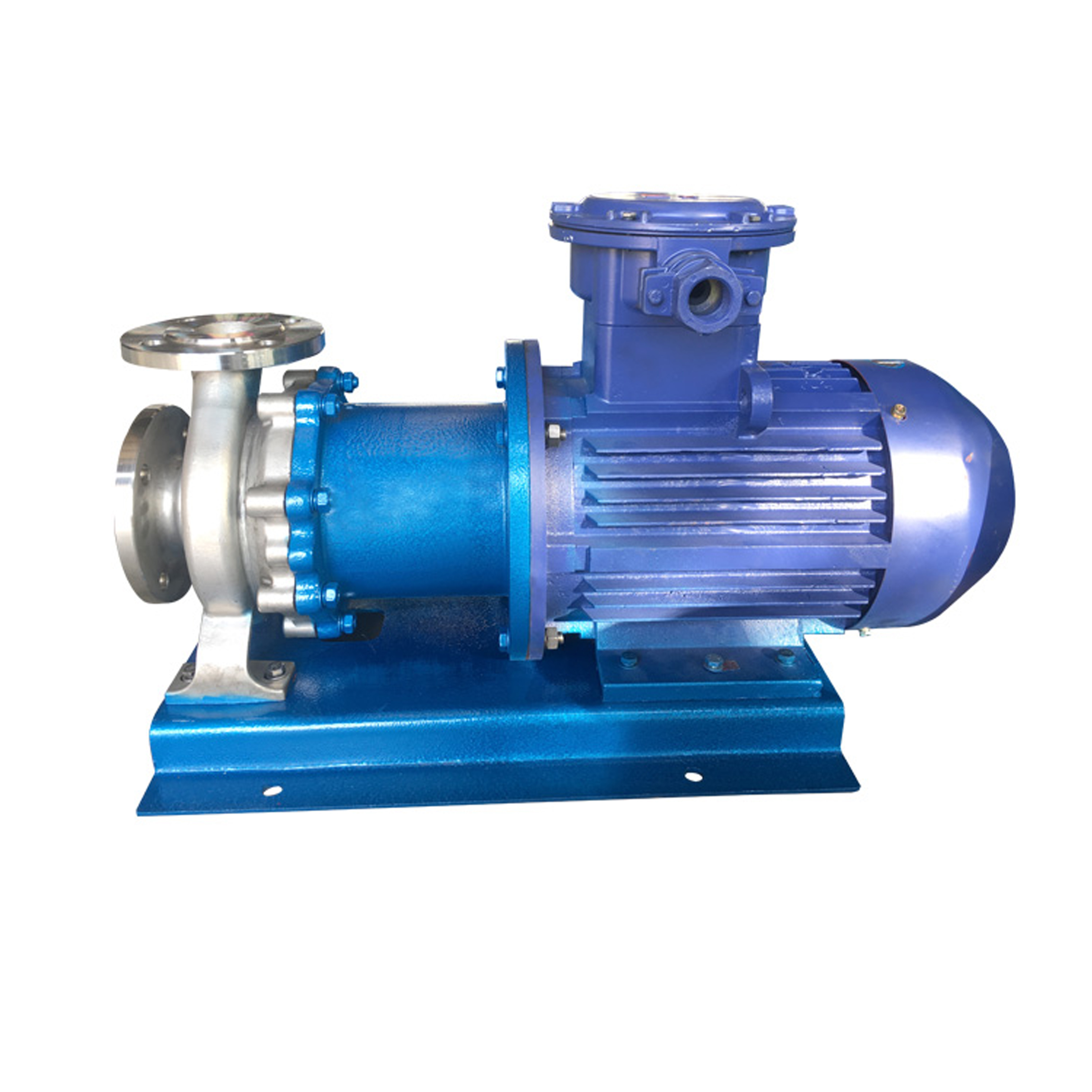

TMC Stainless Steel Mangetic Pump
TMC Stainless steel magnetic pump widely used in petroleum chemical industry, pharmacy, smelt, electroplate, environmental protection, food industry, film processing, water treatment, etc.
Description
Introduction:
- TMC stainless steel magnetic pump chemical industrial chlorine pump adopts the magnetism transmission principle and cooling installation to transport corrosive medium of high temperature without leakage.
- The chlorine pump is with merits of compact structure, good corrosion resistance ability, reliable running and no leakage.
- The magnetic pump is used to transferacid, lye, oil, rare and precious liquid, venom, volatile, etc.
- Widely used in petroleum chemical industry, pharmacy, smelt, electroplate, environmental protection, food industry, film processing, water treatment, etc.
Product details:
| Working Principle: | Centrifugal, Magnetic |
| Main applications: | Chemical |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase 50hz/60hz |
| Max.permissible fluid temperature: | 100°C(212°F)/280°C(536°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless steel/Stainless steel |
| Shaft seal type: | Static sealing |
| Free passage: | 0 mm |
| Maximum drive rating: | 55KW(75HP) |
| Maximum caliber: | 100mm(4inch) |
| Maximum discharge-side pressure: | 0.8MPa(8bar) |
| Maximum head: | 80m(262.4ft) |
| Flow rate range: | 3.2-100m3/h(14.1-440 US.GPM) |
Performance data:
| Model | Caliber(mm) | Capacity | Head | Motor power | Voltage | |
| Inlet | Outlet | (m3/h) | (m) | (KW) | (Phase) | |
| TMC32-25-125 | 32 | 20 | 3.2 | 20 | 2.2 | 3phase |
| TMC32-25-160 | 32 | 20 | 3.2 | 32 | 3 | 3phase |
| TMC40-25-105 | 40 | 25 | 6.3 | 12.5 | 1.1 | 3phase |
| TMC40-25-125 | 40 | 25 | 6.3 | 20 | 3 | 3phase |
| TMC40-25-160 | 40 | 25 | 6.3 | 32 | 4 | 3phase |
| TMC50-32-125 | 50 | 32 | 12.5 | 20 | 3 | 3phase |
| TMC50-32-160 | 50 | 32 | 12.5 | 32 | 4 | 3phase |
| TMC50-32-200 | 50 | 32 | 12.5 | 50 | 7.5 | 3phase |
| TMC50-32-250 | 50 | 32 | 12.5 | 80 | 18.5 | 3phase |
| TMC65-50-125 | 65 | 50 | 25 | 20 | 4 | 3phase |
| TMC65-50-160 | 65 | 50 | 25 | 32 | 7.5 | 3phase |
| TMC65-40-200 | 65 | 40 | 25 | 50 | 15 | 3phase |
| TMC65-40-250 | 65 | 40 | 25 | 80 | 22 | 3phase |
| TMC80-65-125 | 80 | 65 | 50 | 20 | 7.5 | 3phase |
| TMC80-65-160 | 80 | 65 | 50 | 32 | 11 | 3phase |
| TMC80-50-200 | 80 | 50 | 50 | 50 | 22 | 3phase |
| TMC80-50-250 | 80 | 50 | 50 | 80 | 37 | 3phase |
| TMC100-80-125 | 100 | 80 | 100 | 20 | 15 | 3phase |
| TMC100-80-160 | 100 | 80 | 100 | 32 | 22 | 3phase |
| TMC100-65-200 | 100 | 65 | 100 | 50 | 37 | 3phase |
| TMC100-65-250 | 100 | 65 | 100 | 80 | 55 | 3phase |
NOTE: The performance of the TMC-G is the same as in the table.
