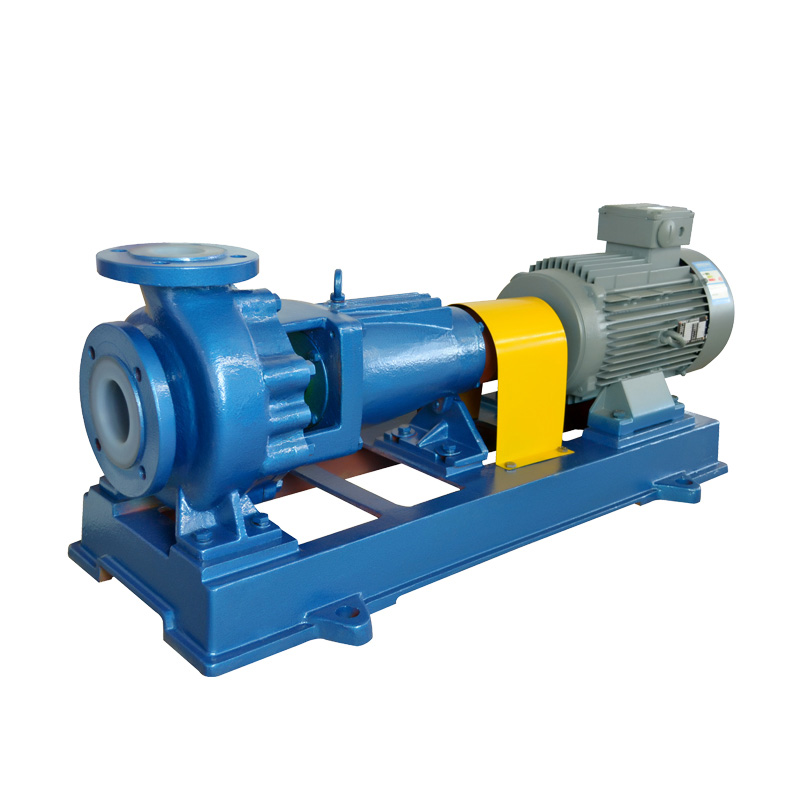

IHF teflon lined chemical pump

Description

Product introduction:

1. IHF single stage single suction pump teflon lined chemical pump is working for highly corrosive mediums between -85°C~120°C (-121°F~248°F), such as arbitrary concentration of vitriol, muriatic acid, hydrofluoric acid, nitric acid, aqua regia, strong base, strong oxidant, organic solvent, reducing agent, etc.
2. The casing is metal lined with Ptfe. Cover, impeller and shaft sleeve is metal insert with fluorine plastic jacket, inlet & outlet is strengthened with cast steel. All wet parts of pump are made of fluorine plastic.
3. The centrifugal pump is wearing resistant, corrosion resistant, thermos table, non-aging, strong mechanical strength, running stable, advanced in structure, sealing reliable, easy to maintain and long service life.
4. The chemical pump is widely used in chemistry, pharmacy, petroleum, metallurgy, smelting, electricity, electroplating, dye, farm chemical, papermaking, food, spinning or other industries.

Product details:

Working Principle:	Centrifugal
Main applications:	Chemical
Driver:	Electric motor
Power Specs:	110/220V 1phase, 220/380/415V 3phase; 50hz/60hz
Max.permissible fluid temperature:	120°C(248°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing parts material:	Metal lined with PTFE
Shaft seal type:	Mechanical seal
Free passage:	1 mm
Maximum drive rating:	45KW(60HP)
Maximum caliber:	100mm(4inch)
Maximum discharge-side pressure:	0.8MPa(8bar)
Maximum head:	80m(262.4ft)
Flow rate range:	2.5-100m3/h(11-440US.GPM)



Performance data:

Model	Speed	Capacity		Head	Eff.	Power(KW)		NPSH(r)
	(r/min)	(m3/h)	(L/s)	(m)	(%)	Shaft	Motor	(m)
IHF32-25-125	2900	5	1.39	20	44	0.62	1.5	2.3
	1450	2.5	0.69	5	40	0.085	0.75	2.3
IHF32-25-125A	2900	4.5	1.25	16	41	0.48	1.1	2.3
IHF32-25-160	2900	5	1.39	32	40	1.1	2.2	2.3
	1450	2.5	0.69	8	38	0.143	0.75	2.3
IHF32-25-160A	2900	4.5	1.25	28	35	0.97	1.5	2.3
IHF40-32-125	2900	6.5	1.8	20	45	0.79	2.2	2.5
	1450	3.25	0.9	5	41	0.108	0.75	2.5
IHF40-32-125A	2900	5.6	1.56	16	42	0.58	1.5	2.5
IHF40-32-160	2900	6.5	1.8	32	40	1.42	2.2	2.5
	1450	2.5	0.9	8	36	0.15	0.75	2.5
IHF40-32-160A	2900	5.6	1.56	28	38	1.23	1.5	2.5
IHF50-32-125	2900	12.5	1.56	20	54	1.26	2.2	3
	1450	6.25	1.74	5	46	0.18	0.75	3
IHF50-32-125A	2900	11	3.05	16	52	0.92	1.5	3
IHF50-32-160	2900	12.5	3.47	32	48	2.27	4	3
	1450	6.25	1.74	8	41	0.33	0.75	3
IHF50-32-160A	2900	11.7	3.25	28	47	1.88	3	3
IHF50-32-200	2900	12.5	3.47	50	42	4.1	7.5	3
	1450	6.25	1.74	12.5	33	0.65	1.5	3
IHF50-32-200A	2900	11.7	3.25	44	40	3.5	5.5	3
IHF50-32-250	2900	12.5	3.47	80	35	7.8	11	3
	1450	6.25	1.74	20	27	1.26	2.2	3
IHF50-32-250A	2900	11.7	3.25	70	34	6.56	7.5	3
… …
IHF100-80-125	2900	100	27.8	20	75	7.26	11	5
	1450	50	13.9	5	70	0.97	1.5	4.5
IHF100-80-125A	2900	89	24.7	16	73	5.3	7.5	5
IHF100-80-160	2900	100	27.8	32	74	11.78	15	5
	1450	50	13.9	8	68	1.6	2.2	4.5
IHF100-80-160A	2900	93.5	26	28	73	9.3	11	5
IHF100-65-200	2900	100	27.8	50	72	18.91	360	5
	1450	50	13.9	12.5	68	2.5	4	4.5
IHF100-65-200A	2900	93.5	26	44	71	15.02	22	5
IHF100-65-250	2900	100	27.8	80	69	31.6	45	4
	1450	50	13.9	20	63	4.3	5.5	4.5
IHF100-65-250A	2900	93.5	26	70	68	26.2	37	4.5

Parameter table above is only a part of whole. For more, please contact us directly.
