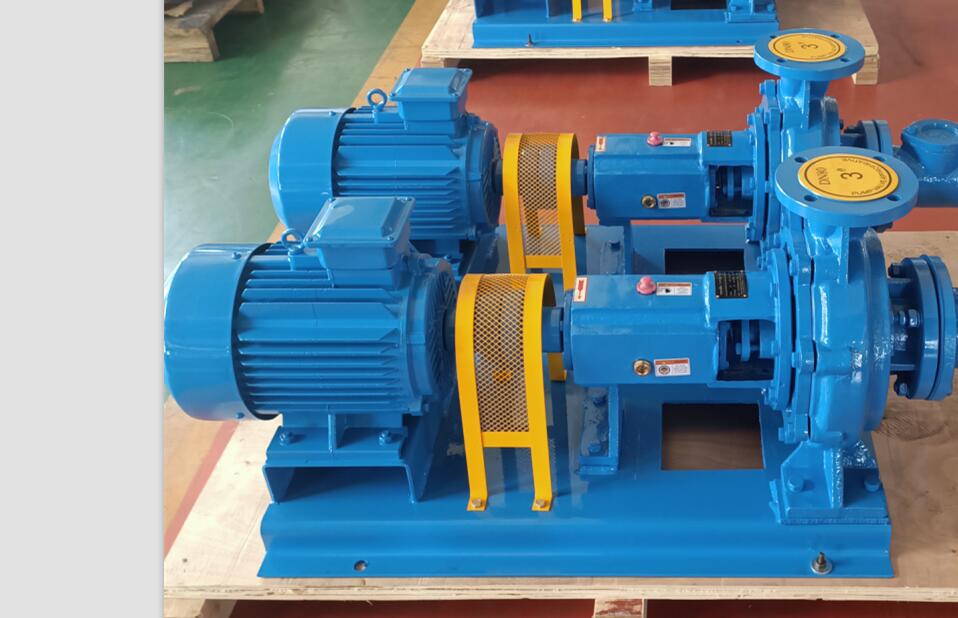

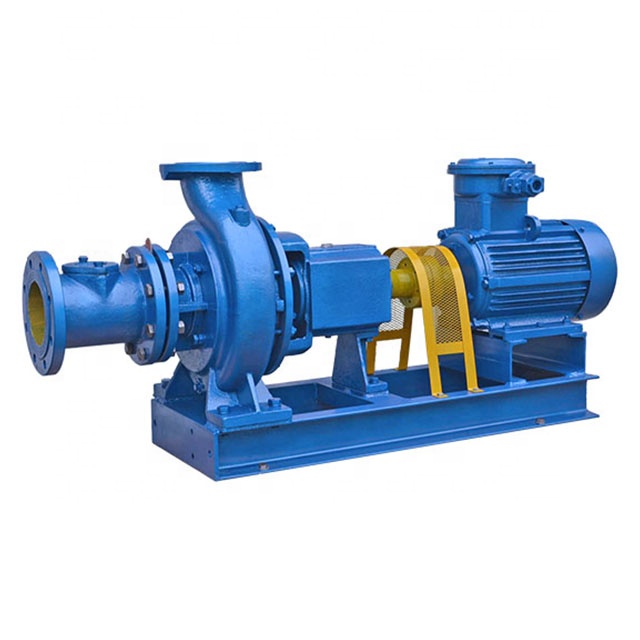

XWJ Centrifugal Slurry Pump

Description

XWJ cast iron large centrifugal slurry pump paper stock pump

Introduction:

1. XWJ cast iron large centrifugal slurry pump is a new energy-saving pulp pump of JOHAMES, which is with high efficiency, without leakage, good anti-clogging ability, stable operating performance.
2. The impeller is semi-open or all open.
3. The gap between wear plate and impeller is adjustable, and the shaft seal is mechanical seal and made of high quality material.
4. Apply to the transfer liquid of temperature ≤110°C(230°F) & concentration ≤ 6% in light industry or papermaking. Also being used in industry & city water supply & drainage.

Product details:

Working Principle:	Centrifugal
Main applications:	Pulp, water, sewage
Driver:	Electric motor
Power Specs:	380/415 3phase; 50hz/60hz
Max.permissible fluid temperature:	110°C(230°F)
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless steel / Cast iron, Stainless steel
Shaft seal type:	Mechanical sealing
Maximum drive rating:	55KW(75HP)
Maximum caliber:	200mm(8inch)
Maximum discharge-side pressure:	0.32MPa(3.2bar)
Maximum head:	32m(105.0ft)
Flow rate range:	20-400m3/h(88-1760US.GPM)



3. Performance data:

Model	Capacity	Head	Caliber	Motor power	Speed
	(m3/h)	(m)	(mm)	(KW)	(r/min)
80XWJ25-12.5	25	12.5	80	2.2	1450
80XWJ25-12.5A	20	10	80	1.5	1450
80XWJ25-20	25	20	80	3	1450
80XWJ25-20A	20	16	80	2.2	1450
100XWJ50-20	50	20	100	5.5	1450
100XWJ50-20A	45	18	100	4	1450
100XWJ50-20B	45	16	100	4	1450
100XWJ50-32	50	32	100	11	1450
100XWJ50-32A	40	26	100	5.5	1450
125XWJ100-20	100	20	125	11	1450
125XWJ100-20A	90	18	125	7.5	1450
125XWJ100-20B	80	16	125	7.5	1450
125XWJ100-32	100	32	125	15	1450
125XWJ100-32A	90	28	125	11	1450
125XWJ200-32B	80	26	125	11	1450
150XWJ200-20	200	20	150	18.5	1450
150XWJ200-20A	180	18	150	15	1450
150XWJ200-20B	160	16	150	11	1450
150XWJ200-32	200	32	150	30	1450
150XWJ200-32A	187	28	150	22	1450
150XWJ400-32B	170	24	150	18.5	1450
200XWJ400-20	400	20	200	37	1450
200XWJ400-20A	380	18	200	30	1450
200XWJ400-20B	340	15	200	22	1450
200XWJ400-32	400	32	200	55	1450
200XWJ400-32A	375	28	200	45	1450
200XWJ400-32B	340	24	200	37	1450
