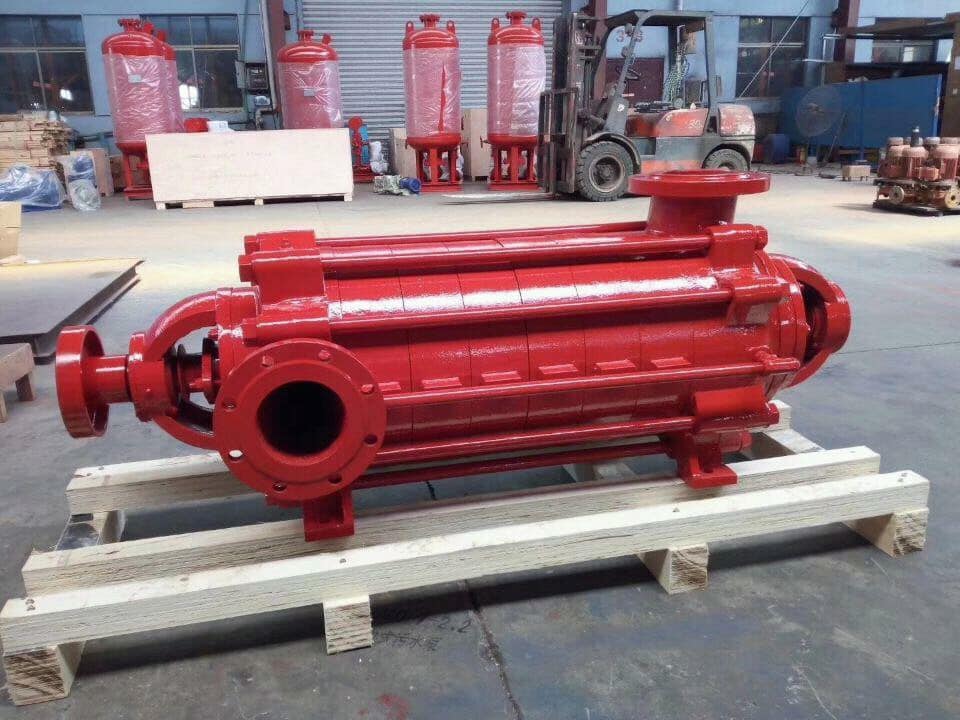

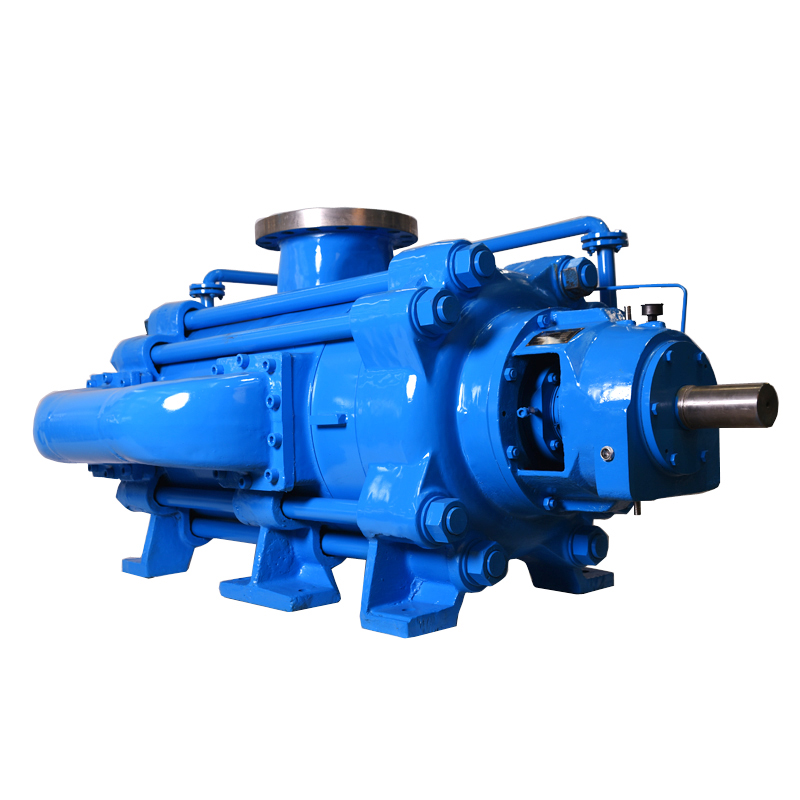

ZMD horizontal multistage centrifugal pump
Widely used in mining industry, Urban water supply, Water treatment and RO system, Cooling water system, Boiling water feeding, Power station and water plant, Power station and water plant, Power station and water plant, etc.
Description
Introduction:
- ZMD horizontal multistage centrifugal pump big flowrate high head water pump is compact structure, stable running, low noise, convenient operation.
- The water pump is used to deliver water which contain solid particles with the temperature range from -60C~400 C.
- The shaft seal can be with soft packing or mechanical sealing. Pump material could be cast iron or cast steel according to customers’ requirements.
- Widely used in mining industry, Urban water supply, Water treatment and RO system, Cooling water system, Boiling water feeding, Power station and water plant, Power station and water plant, Power station and water plant, etc.
Product details:
| Working Principle: | Centrifugal, Multistage |
| Main applications: | Water |
| Driver: | Electric motor |
| Power Specs: | 220/380/415V/6KV 3phase;50hz/60hz |
| Max.allowed fluid temperature: | 600C |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing | Cast iron, Stainless steel |
| Shaft seal type: | Mechanical seal; Packing gland |
| Free passage: | 1/4 impeller channel |
| Maximum drive rating: | 4500Kw |
| Maximum caliber: | 1250mm |
| Maximum discharge-side pressure: | 10.5MPa(105bar) |
| Maximum head: | 1056m(3463.7ft) |
| Flow rate range: | 3.75-1350m3/h |
Below is part of Parameter Table, if you need full data, just ask me, I will send you full catalogue :
| Model | Capacity
m3/h |
Head
m |
Motor Model | Power kw |
| ZD6-25×3 | 6.3 | 75 | Y132S1-2 | 5.5 |
| ×4 | 100 | Y132S2-2 | 7.5 | |
| ×5 | 125 | Y132S2-2 | 7.5 | |
| ×6 | 150 | Y160M1-2 | 11 | |
| ×7 | 175 | Y160M1-2 | 11 | |
| ×8 | 200 | Y160M2-2 | 15 | |
| ×9 | 225 | Y160M2-2 | 15 | |
| ×10 | 250 | Y160L-2 | 18.5 | |
| ×11 | 275 | Y160L-2 | 18.5 | |
| ×12 | 300 | Y160L-2 | 18.5 | |
| ZD85-67×3 | 85 | 201 | Y280M-2 | 90 |
| ×4 | 268 | Y315S-2 | 110 | |
| ×5 | 335 | Y315L1-2 | 160 | |
| ×6 | 402 | Y315L1-2 | 160 | |
| ×7 | 469 | Y315L2-2 | 200 | |
| ×8 | 536 | Y355M1-2 | 220 | |
| ×9 | 603 | Y355M2-2 | 250 | |
| ZD155-67×3 | 155 | 201 | Y315M-2 | 132 |
| ×4 | 268 | Y315L2-2 | 200 | |
| ×5 | 335 | Y355M1-2 | 220 | |
| ×6 | 402 | Y355L1-2 | 280 | |
| ×7 | 469 | Y355L2-2 | 315 | |
| ×8 | 536 | Y3555-2 6KV | 355 | |
| ×9 | 603 | Y4001-2 6KV | 450 | |
| 200ZD43×2 | 288 | 86 | Y315S-4 | 110 |
| ×3 | 122.4 | Y315L1-4 | 160 | |
| ×4 | 163.2 | Y355M1-4 | 220 | |
| ×5 | 204 | Y355L1-4 | 280 | |
| ×6 | 244.8 | Y355L1-4 | 280 | |
| ×7 | 285.6 | Y4001-4 6KV | 355 | |
| ×8 | 326.4 | Y4002-4 6KV | 400 | |
| ×9 | 367.2 | Y4003-4 6KV | 450 | |
| The other pumps’ model please contact us. | ||||
| 1100ZMD | 1100m3/h | 850.0 | Y2-710-4-4 6KV | 4500 |
