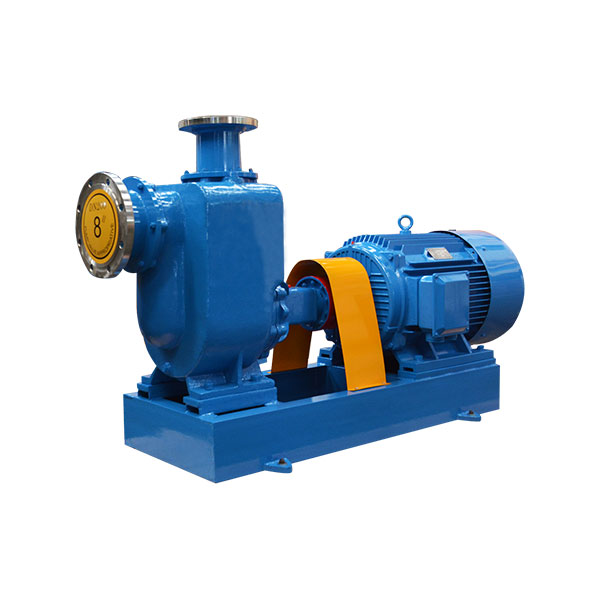

ZW Industrial Sewage Self Priming Pump

self priming pump is widely applicable for the lines of urban diacharge projects, light industry, papermaking, textile, foodstuff, chemicals, electric power, petroleum, mines, aquiculture,etc.

Description

Product introduction:

  1. ZW horizontal electric centrifugal waste water pump industrial sewage self priming pump is special designed for sewage and waste water transfer and treatment.
  2. The sewage pump is with self-priming structure, at the bottom of inlet, there’s a hole for unloading of solids left in pump.
  3. It also could be equipped with diesel engine for wild application.
  4. The unique structure of open impeller makes sure the free pass of solids in sewage with max size of 60% of outlet DN and fiber 150% of impeller diameter.
  5. The self priming pump is widely applicable for the lines of urban diacharge projects, light industry, papermaking, textile, foodstuff, chemicals, electric power, petroleum, mines, aquiculture and so on.



Products details:

Working Principle: Centrifugal, Self-priming
Main applications: Sewage with soilds, dirty water
Driver: Electric motor, diesel engine
Power Specs: 220/380/400/415 V 3phase;  50hz/60hz
Max.permissible fluid temperature: 80°C(176°F)
Type of connection: Flange
Installation position: Horizontal
Casing parts material: Cast iron, Stainless steel
Shaft seal type: Mechanical seal
Maximum grain diameter: 15-170mm
 Maximum fiber length: 120-2000mm
Maximum viscosity: 1×104C.S.T
Maximum drive rating: 55KW(75HP)
Maximum caliber: 300mm(12nch)
Maximum discharge-side pressure: 0.8MPa(8bar)
Maximum head: 80m(262.4ft)
Flow rate range: 8-800m3/h(35.2-3520US.GPM)



Performance data:

Model Capacity Power Head Speed Suction Max grain diameter Max fiber

length

Pressure
(m3/h) (KW) (m) (r/min) (m) (mm) (mm) (MPa)
25ZW8-15 8 1.5 15 2900 5.5 15 120 0.1-0.18
32ZW10-20 10 2.2 20 2900 5.5 20 150 0.15-0.25
40ZW20-15 20 2.2 15 2900 5.5 25 230 0.1-0.18
40ZW15-30 15 3 30 2900 5.5 25 230 0.24-0.32
50ZW10-20 10 2.2 20 2900 5.5 30 250 0.15-0.25
50ZW20-15 20 2.2 15 2900 5.5 30 250 0.1-0.18
50ZW15-30 15 3 30 2900 5.5 30 250 0.24-0.32
65ZW30-18 30 4 18 2900 5.5 40 380 0.13-0.20
65ZW20-30 20 5.5 30 2900 5.5 40 380 0.24-0.32
65ZW25-40 25 7.5 40 2900 5.5 40 380 0.32-0.42
80ZW40-16(2) 40 4 16 2900 5.5 50 400 0.11-0.18
80ZW40-16(4) 40 4 16 1450 5.5 50 400 0.1-0.18
80ZW65-25 65 7.5 25 2900 5.5 50 400 0.18-0.28
80ZW80-35 80 15 35 2900 5.5 50 400 0.24-0.37
80ZW80-45 80 22 45 2900 5.5 50 400 0.38-0.48
80ZW50-60 50 22 60 2900 5.5 50 400 0.55-0.65
100ZW100-15 100 7.5 15 1450 5.5 60 500 0.1-0.18
100ZW80-20 80 7.5 20 1450 5.5 60 500 0.15-0.25
100ZW100-20 100 11 20 1450 5.5 60 500 0.15-0.25
100ZW100-30 100 22 30 2900 5.5 60 500 0.24-0.32
100ZW80-60 80 37 60 2900 5.5 60 500 0.55-0.65
I00ZW80-80 80 45 80 2900 5.5 60 500 0.75-0.82
125ZW120-20 120 15 20 1450 5.5 80 750 0.13-0.22
150W200-15 200 15 15 1450 5.5 80 750 0.1-0.18
150ZW200-20 200 22 20 1450 5 80 750 0.15-0.25
150ZW200-28 200 30 28 1450 5 80 750 0.23-0.30
150ZW180-40 180 55 40 1450 5 80 750 0.32-0.42
200ZW280-14 280 22 14 1450 5 120 1000 0.1-0.17
200ZW300-18 300 37 18 1450 5 120 1000 0.13-0.20
200ZW300-25 300 45 25 1450 5 120 1000 0.18-0.28
200ZW280-28 280 55 28 1450 5 120 1000 0.21-0.31
250ZW400-22 400 55 22 1450 4.5 150 1600 0.17-0.25
300ZW800-14 800 55 14 1450 4.5 170 2000 0.1-0.17

self priming pump
